Power Windows: Components

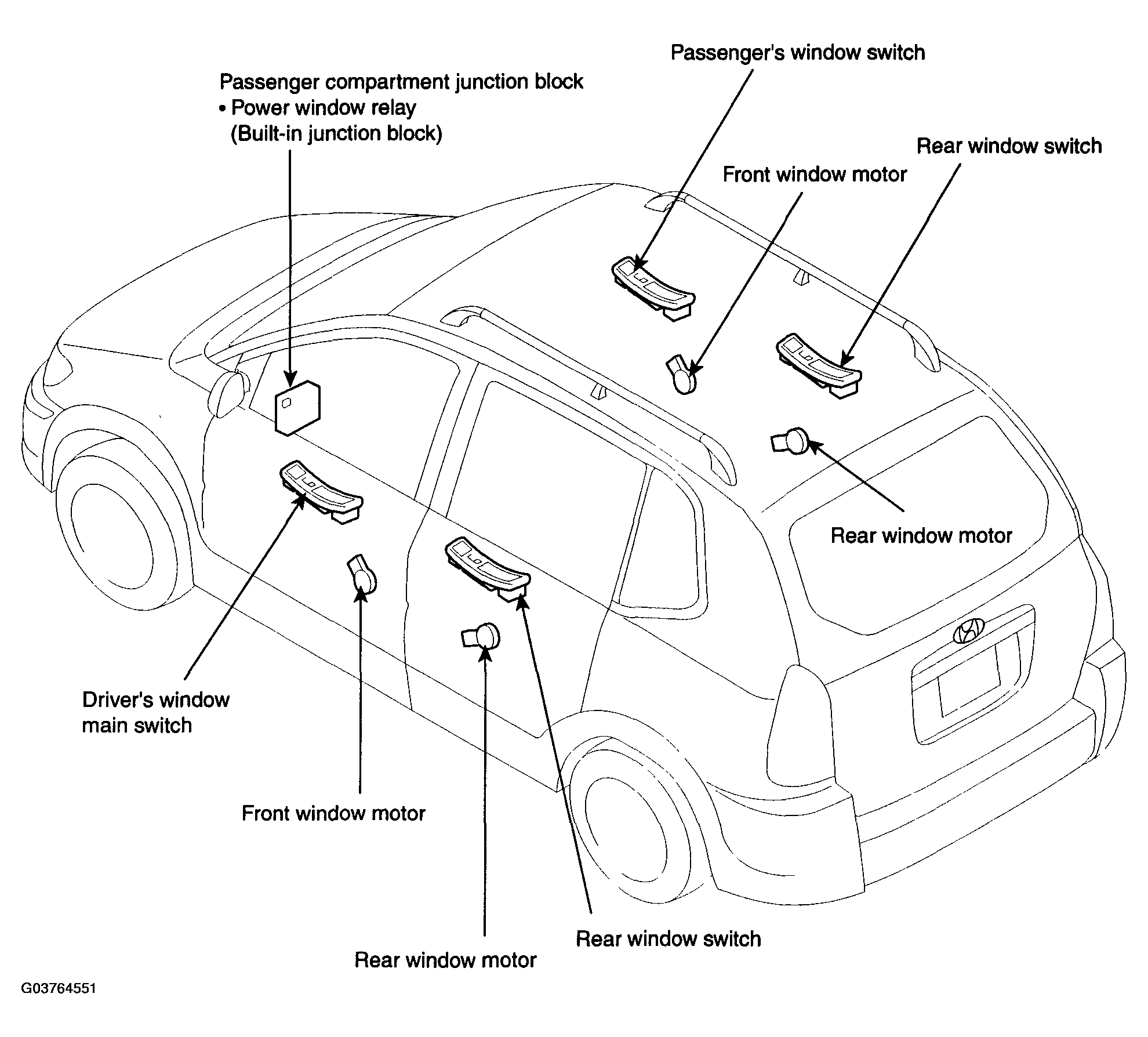

Fig 1: Identifying Power Window Components

G03764551

Courtesy of HYUNDAI MOTOR CO.
