Power Window Main Switch

  1. Remove the power window main switch from the driver's door trim panel.

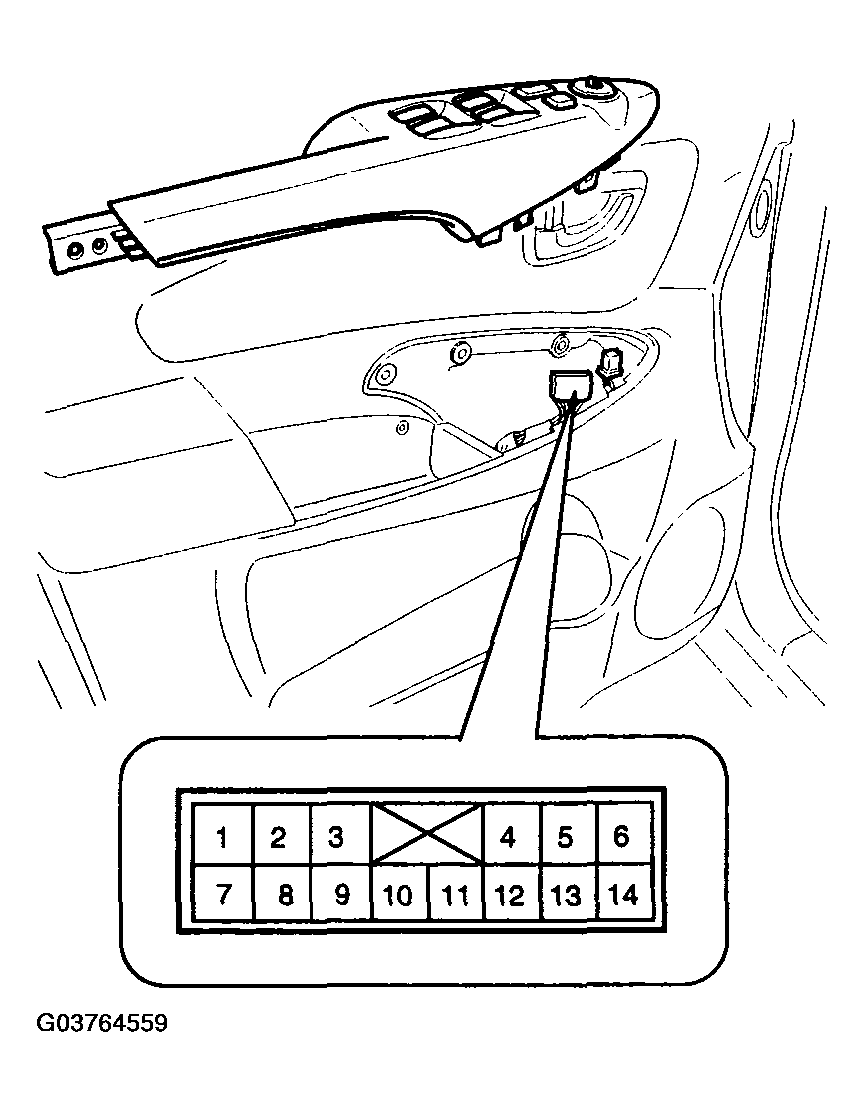

    Fig 1: Identifying Power Window Main Switch Connector Terminals
    G03764559Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.

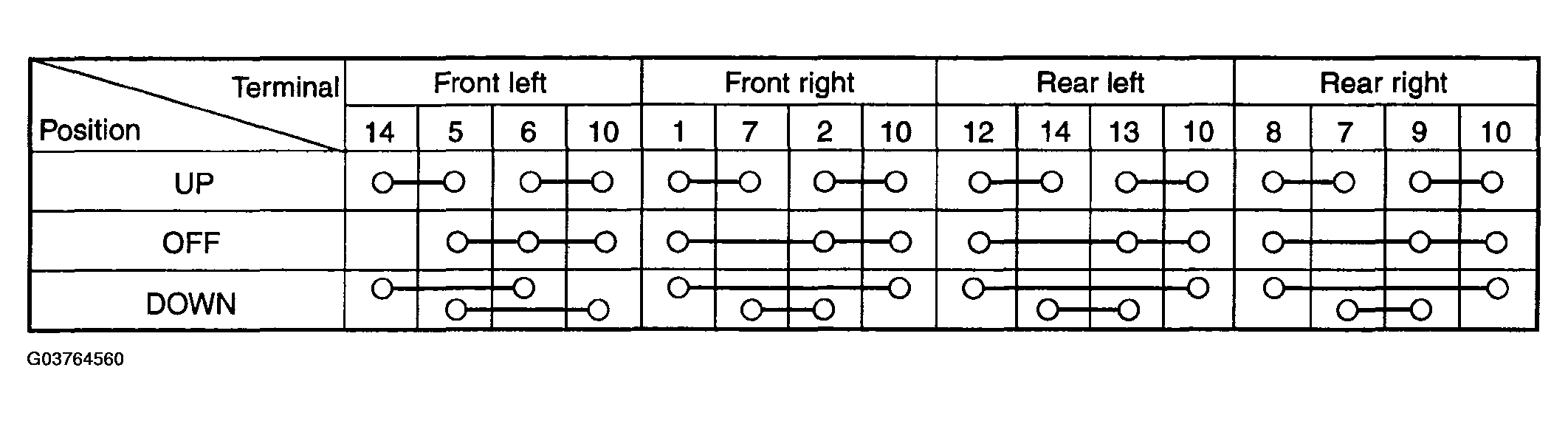

    Fig 2: Power Window Main Switch Continuity Chart
    G03764560Courtesy of HYUNDAI MOTOR CO.
