Adjusting Procedure For "P" Shift Lock Cable

Check that each lock cam is shown in Fig 1.

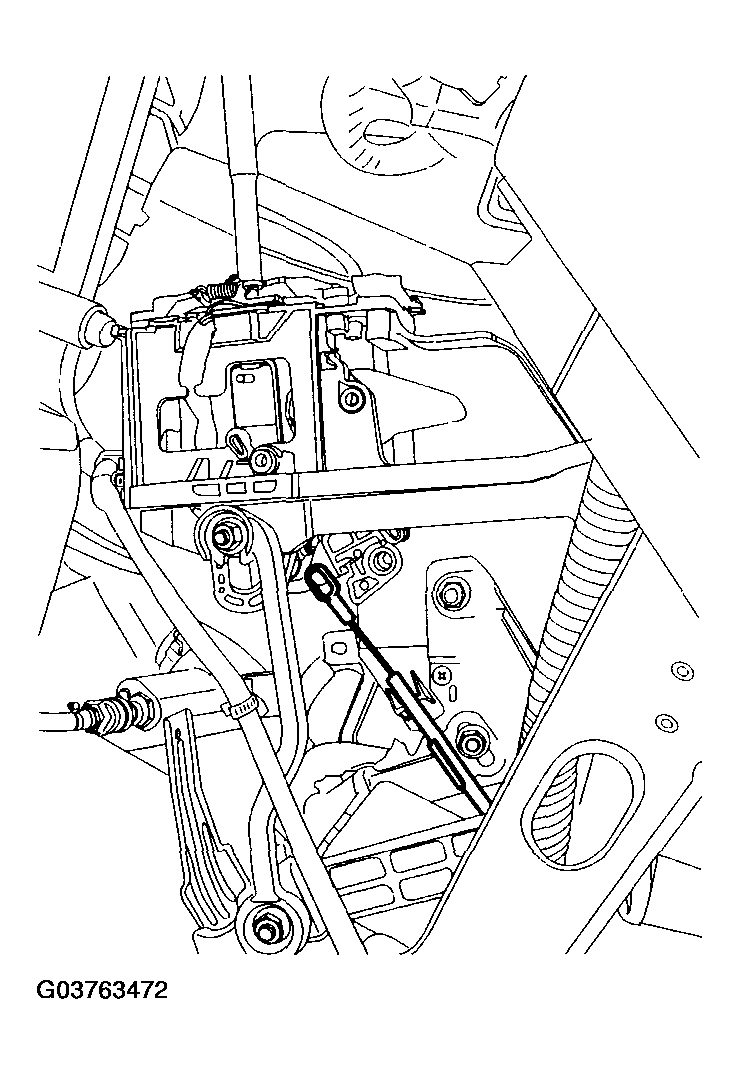

Fig 1: Checking Lock Cams
Courtesy of HYUNDAI MOTOR CO.
Install shift lock cable in position. In this case, shift lock cable must be fixed to brake pedal in position.
Temporarily install shift lock cable to A/T lever assembly as shown in Fig 2. Securely insert cable end into fixing point of shift lock cam.

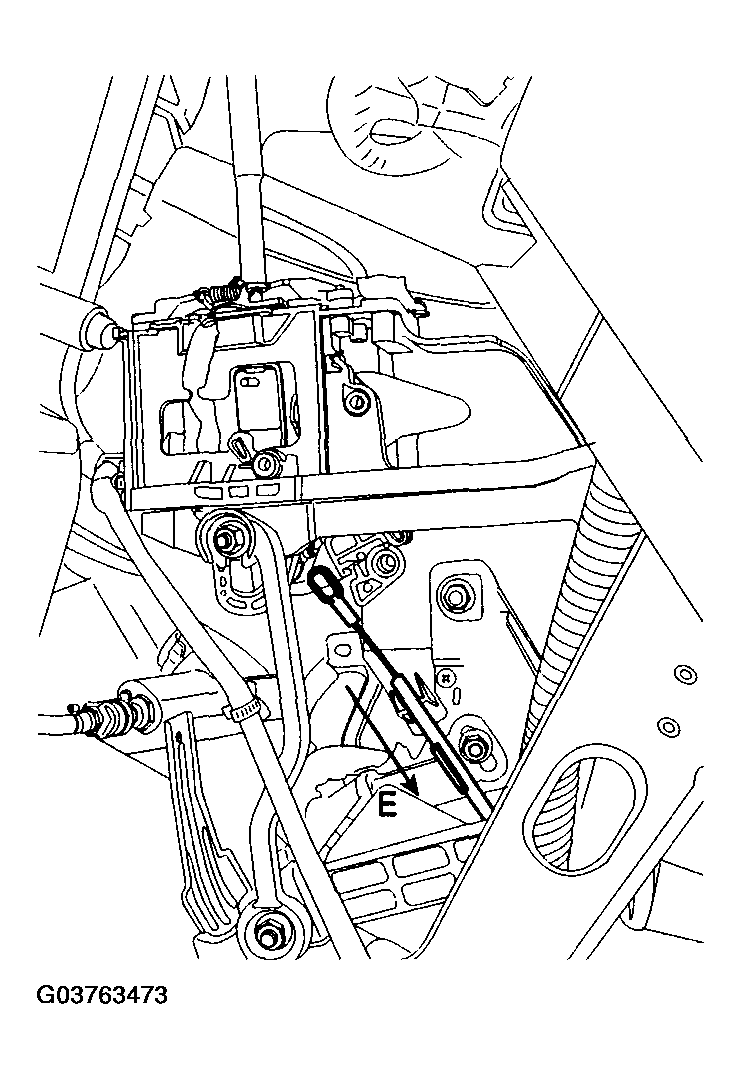

Fig 2: Temporarily Installing Shift Lock Cable To A/T Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Doing the work of 3. slightly pull outer casing of shift lock cable to direction "E" to stretch cable. In this case, shift lock cam must not move.
After checking portion of cable end touches cable fixing pin of shift lock cam. Fix outer casing with a nut
Check the installation condition of the shift lock cam.
