BCM (Body Control Module): Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). Avoid damaging retaining clip. (Refer to the CRASH PAD )
  3. Remove the body control module (A) and after loosening 2 nuts and disconnecting connector.

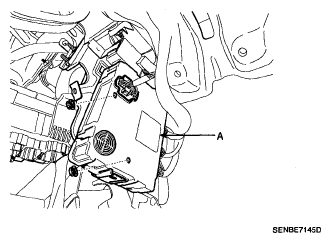

    Fig 1: Identifying Body Control Module And Nuts
    G05331828Courtesy of HYUNDAI MOTOR CO.
