Home >> Hyundai >> 2007 >> Veracruz GLS, AWD >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Suspension System >> Components

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Front Suspension System: Components

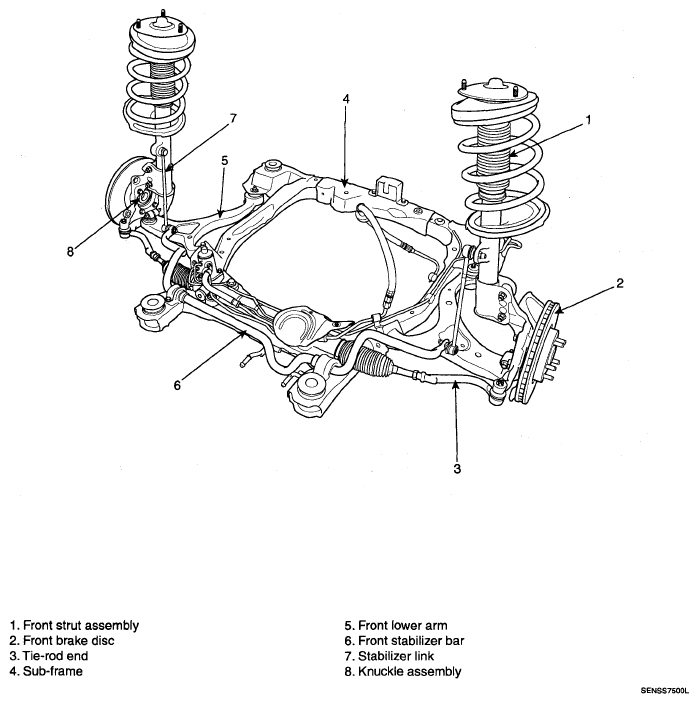

Fig 1: Identifying Front Suspension System Components

G05330544

Courtesy of HYUNDAI MOTOR CO.
