Shift Lever: Components

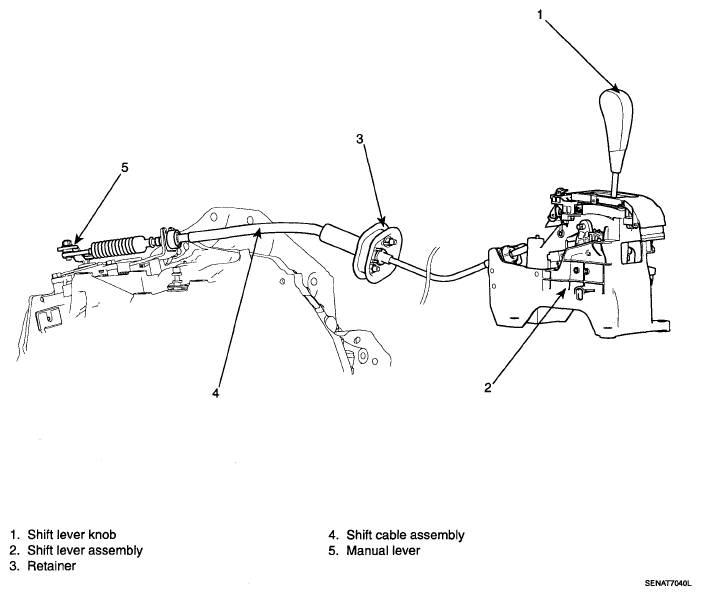

Fig 1: Identifying Shift Lever Components (1 Of 2)
G05330409Courtesy of HYUNDAI MOTOR CO.

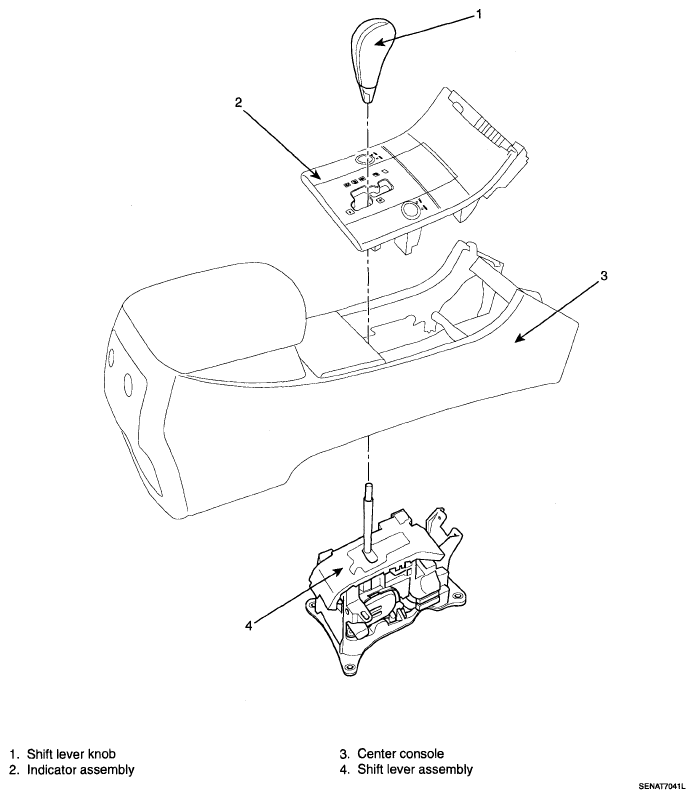

Fig 2: Identifying Shift Lever Components (2 Of 2)
G05330410Courtesy of HYUNDAI MOTOR CO.
