Coupling Assembly: Components

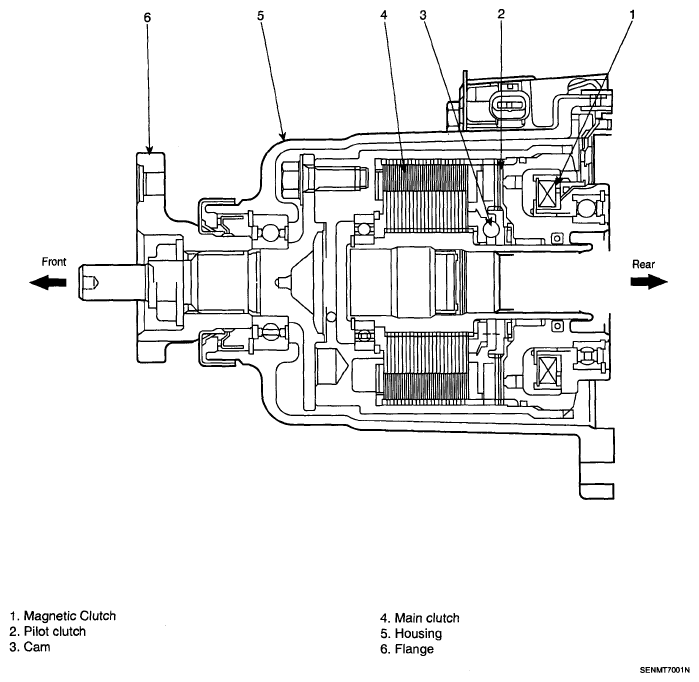

Fig 1: Identifying Coupling Assembly Components
G05330499Courtesy of HYUNDAI MOTOR CO.
