Electronic Control System: Notes

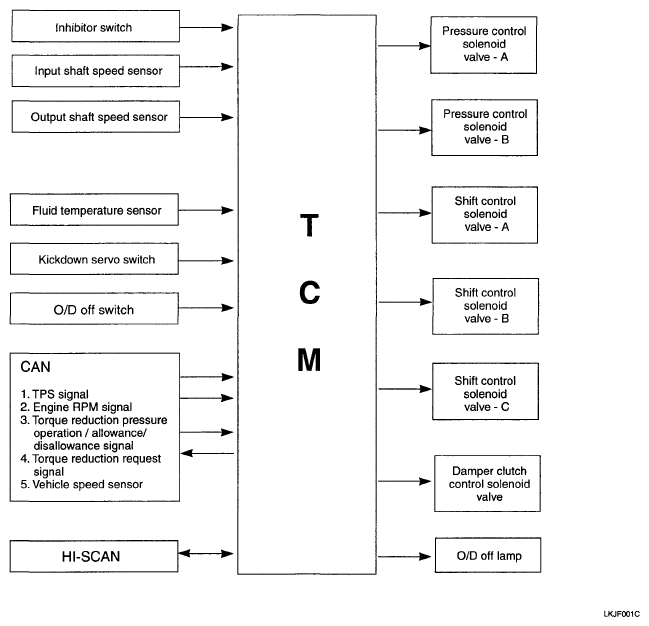

Fig 1: Communication Diagram - Electronic Control System
G04802054Courtesy of HYUNDAI MOTOR CO.
