Navigation Map Software Update (09-BE-004)

Publication date: 2009-05-01
Reference number: 09-BE-004

NAVIGATION MAP SOFTWARE UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 09-BE-004, Date of Issue: May 01, 2009

HYUNDAI:	2009 SONATA; 2008-09 SANTA FE, AZERA & VERACRUZ
GROUP:	ELECTRICAL

DESCRIPTION

This bulletin describes the procedure on how to check the map database software version in Hyundai navigation systems and the process to update the map system database.

IMPORTANT: The Navigation map update procedure will erase all personal settings (addresses, phone numbers, and radio presets) previously programmed to the navigation unit.

MAP SOFTWARE VERSION VERIFICATION PROCEDURE

2009 Sonata

Push the "PWR" button to turn the system on.

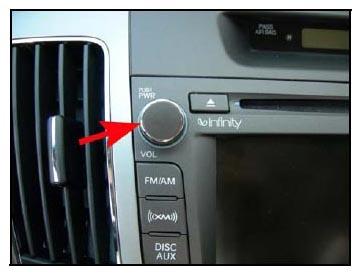

Fig 1: PWR Button
Push the SETUP button on the control panel.

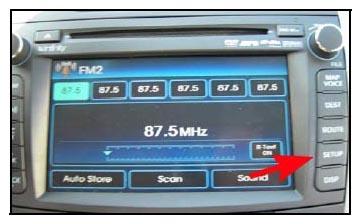

Fig 2: SETUP Button
Press the "Agree" button on the screen.

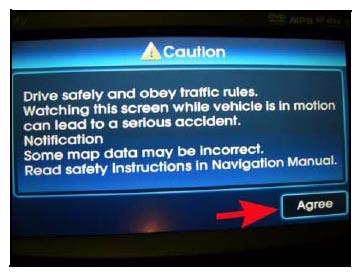

Fig 3: Agree Button
Press "System Info" on the screen.

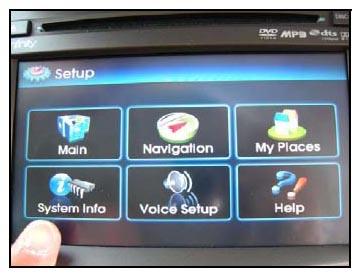

Fig 4: Screen Display - System Info

Check the Map Version on the screen. The Early Map Version is 2.3.3(2007/11/15).

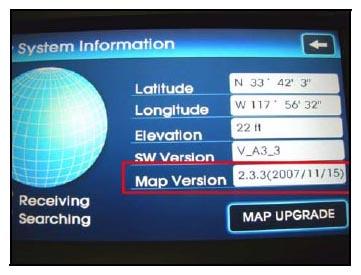

Fig 5: Screen Display - Map Version
The most recent Map Version update (as of 02/01/09) for 2009 Sonata is 2008.09.13 .
- Confirm latest map version update by logging onto www.mapnsoft.com.

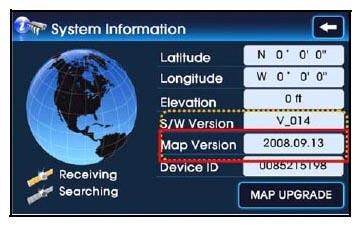

Fig 6: Screen Display - Latest Map Version

2008-09 Veracruz/Azera/Santa Fe

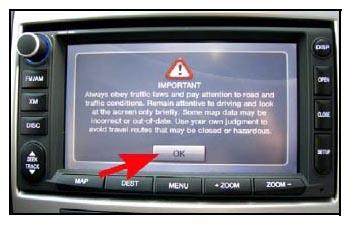

Turn key to the Accessory (ACC) position and press the OK button on the screen.

Fig 7: Screen Display - OK
Push the SETUP button on the control panel.

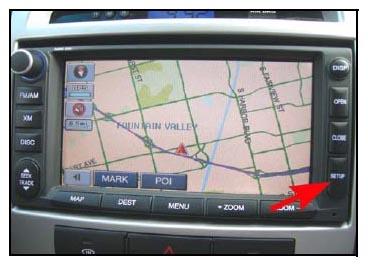

Fig 8: Screen Display - SETUP Button

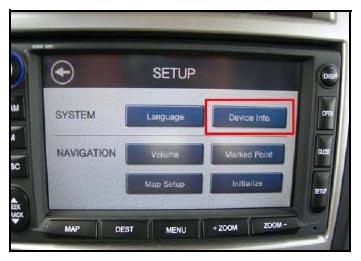

Press the DEVICE INFO button in the SETUP screen.

Fig 9: Screen Display - DEVICE INFO
Check the Map Version on the screen. The early Map Version is 2.3.2 (2007/07/04/14) .

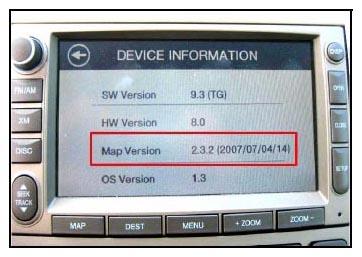

Fig 10: Screen Display - Map Version

The most recent Map Version update (as of 02/01/09) is 02.03.02 (2009.02.12.05) .
- Confirm latest map version update by logging onto www.mapnsoft.com.
Fig 11: Screen Display - Latest Map Version

NAVIGATION MAP UPDATE PROCEDURE

The navigation map database is updated through M&Soft America, Inc. Log on to the website www.mapnsoft.com or call 1(714)775-0727 for assistance in acquiring the latest update map database.

WARRANTY INFORMATION

The navigation map update procedure is not covered under the factory warranty.
