Automatic Transmission/Transaxle
AUTOMATIC TRANSAXLE

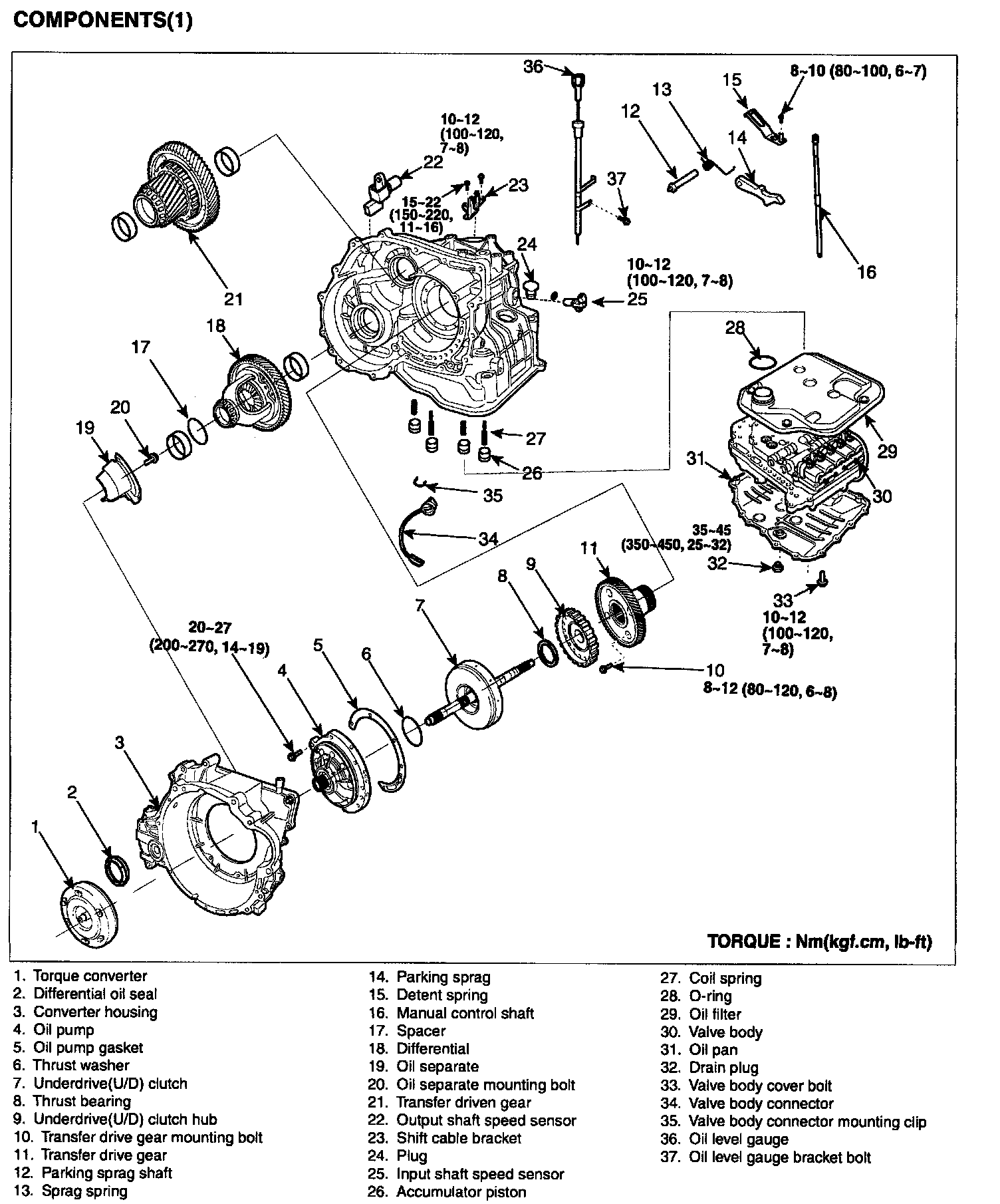

COMPONENTS (1)
COMPONENTS (1):

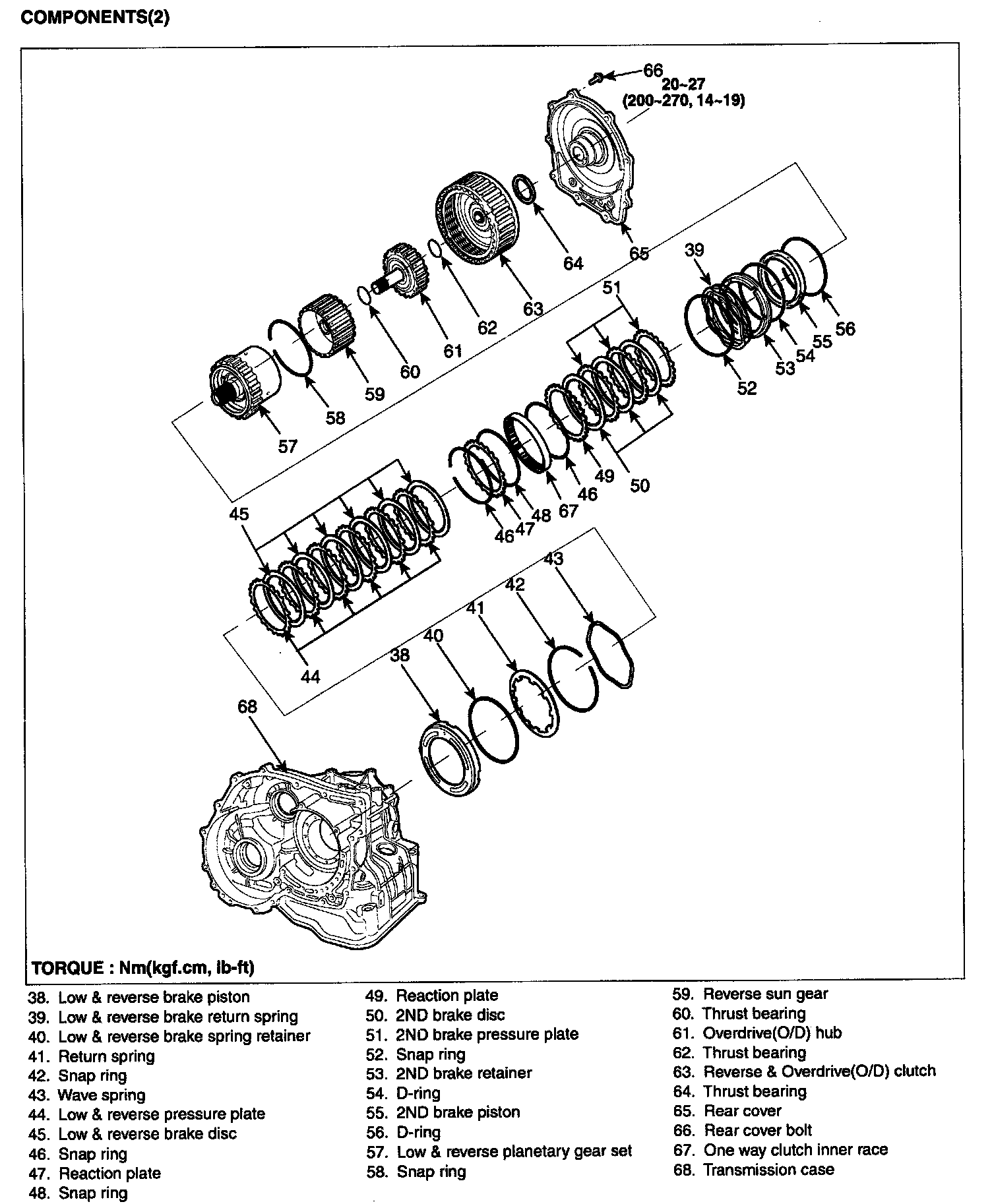

COMPONENTS (2)
COMPONENTS (2):
