Oxygen Sensor: Specifications

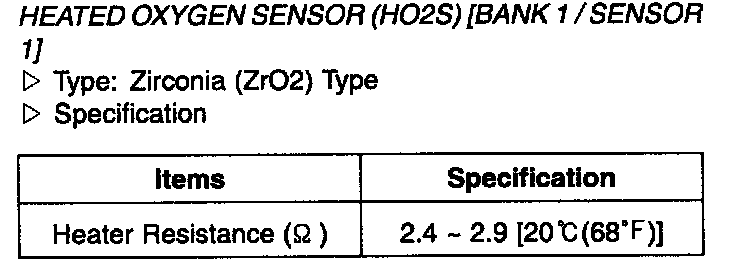

Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1] - Specification:

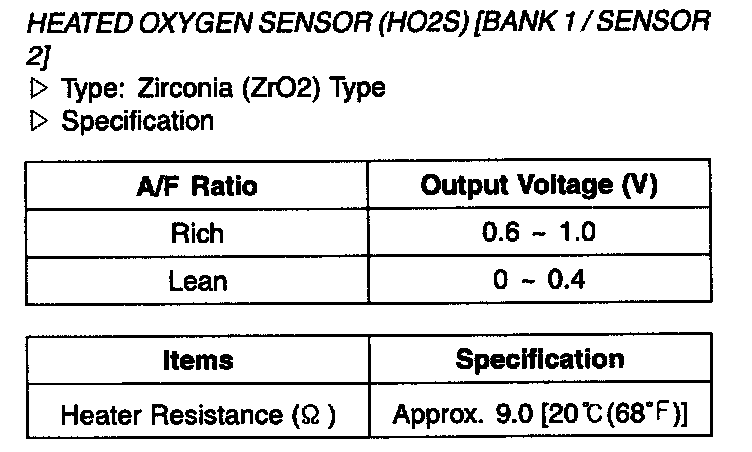

Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] - Specification:
