Adjustable Pedal (Non-IMS)

  1. Adjust Pedal allows to activate Adjustable Pedal feature for the non-IMS equipped vehicle, IPM needs to control the power source (by relay coil control) of the adjustable Pedal switch unit.

    There is no Adjustable Pedal switch for Non-IMS version.

  2. Functional Diagram

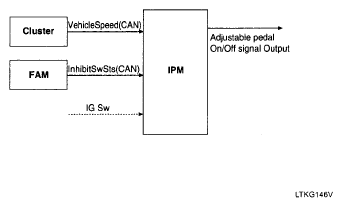

Fig 1: Adjustable Pedal (Non-IMS) - Functional Diagram
G05324890Courtesy of HYUNDAI MOTOR CO.
