Remote Keyless Entry

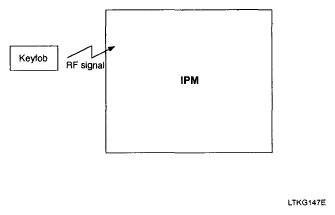

- The aim of this function is to receive the key fob signal and decode it. There are 8 different data included in the radio frequency frame sent by the RKE to the IPM module:
- Central door lock
- Central door unlock
- Panic function
- Driver door window close (long press on RKE lock button)
- Driver door window open (long press on RKE unlock button)
- Left sliding door open/close
- Right sliding door open/close
- Power tailgate open/close
- Each vehicle can have at most 2 associated key fobs. The key fob is physically separated from the key itself (separate device).
- Input/Output Definition and Characteristics
Courtesy of HYUNDAI MOTOR CO.
