Signal Circuit Inspection

Check for short in harness
1. Ignition "ON" and Engine "OFF" & turn signal switch "OFF".
2. Measure resistance between terminal "BCM-IM-13,60" of IPM and chassis ground.
  Specification : ∞ Ω

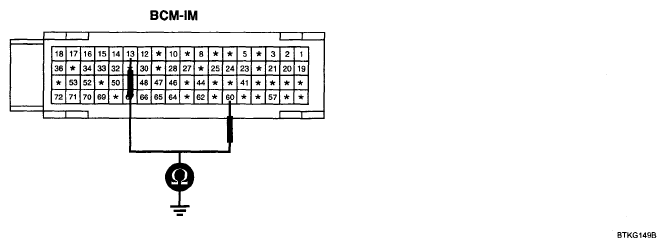

  Fig 1: Measuring Resistance Between Terminal "BCM-IM-13,60" Of IPM And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within specifications?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
