Power Supply Circuit Inspection

Check for short in power harness
1. Ignition "OFF"
2. Disconnect outside mirror defogger.
3. Measure resistance between terminal "3" of DDM and chassis ground.
  Specification : Approx. ∞ Ω

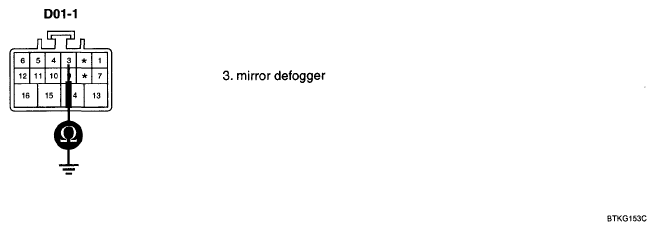

  Fig 1: Measuring Resistance Between Terminal "3" Of DDM And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within specifications?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Check for short in power harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
