Ground Circuit Inspection

Check for open in harness
1. Ignition "OFF".
2. Measure resistance between terminal "4" of power seat slide motor and terminal "27" of IMS.
  Specification : Approx. ∞ Ω

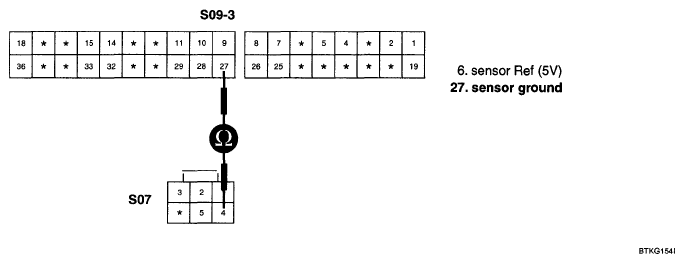

  Fig 1: Measuring Resistance Between Terminal 4 Of Powerseat Slide Motor And Terminal 27 Of IMS
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within specifications?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Check for open in ground harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
