Function Of Safety Power Window: Notes

When driver door power window auto-up switch is operated, safety function is activated.

1. When a force of 100N is detected during window UP mode and the window is positioned between 4-250mm from the top of the door, the window will automatically reverse travel to a distance of 300mm from the top of the door.

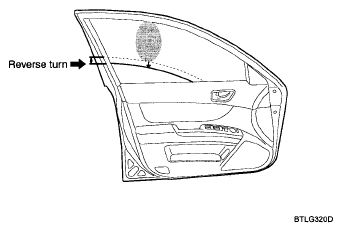

   Fig 1: Safety Power Window Function (1 Of 3)

   Courtesy of HYUNDAI MOTOR CO.

   When an obstruction is detected, and the window is positioned over 250mm from the top of the door, the window will automatically reverse travel to a distance of 20mm from the detection point.

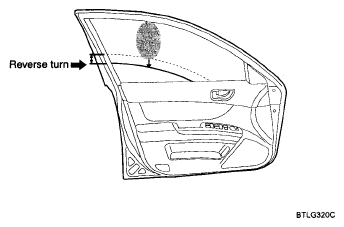

   Fig 2: Safety Power Window Function (2 Of 3)

   Courtesy of HYUNDAI MOTOR CO.
2. When the auto-up switch is held in the UP position, and an obstruction is detected, the window will automatically reverse travel to a distance of 25mm from the detection point.
   Fig 3: Safety Power Window Function (3 Of 3)

   Courtesy of HYUNDAI MOTOR CO.
3. The safety power window function is not available if the window is within 4mm from the top of the door.
