Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (2 Of 2)
>>
DTC Troubleshooting Procedures
>>
DTC P1111 Intake Air Temperature Sensor Circuit Short-Intermittent High Input
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

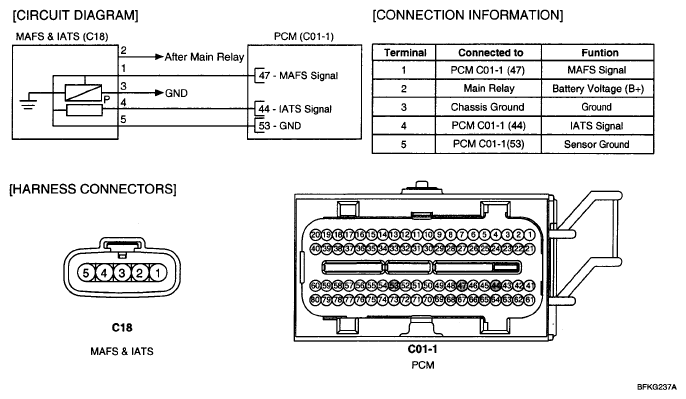

Fig 1: Intake Air Temperature Sensor And Mass Air Flow Sensor - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
