Power Supply Circuit Inspection

Check open in ground circuit
1. Ignition "ON" & engine "OFF".
2. Measure the resistance between Right turn signal lamp power circuit of FAM (BCM-FE-39) and turn lamp (E25-1).
  Specification : 0 Ω

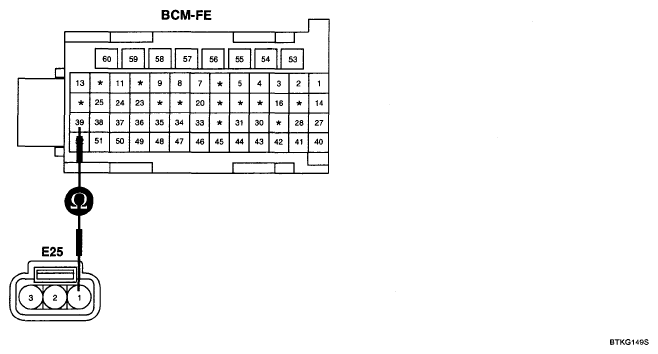

  Fig 1: Measuring Resistance Between Right Turn Signal Lamp Power Circuit Of FAM (BCM-FE-39) And Turn Lamp (E25-1)
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within the specification?
  YES

  Go to "GROUND CIRCUIT INSPECTION ".

  NO

  Repair open to ground in power circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
