Component Inspection

Check backup lamp
1. Ignition "ON" & engine "OFF"
2. Disconnect backup lamp
3. Measure the resistance between both terminals of backup lamp light bulb
  Specification : approx. 0.04Ω

  (If light bulb fails, ∞ Ω is measured.)

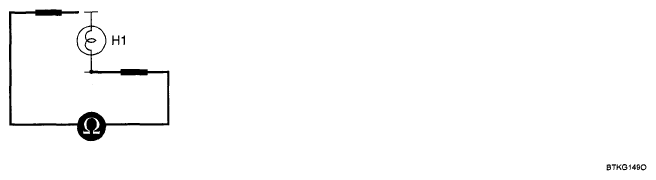

  Fig 1: Measuring Resistance Between Both Terminals Of Backup Lamp Light Bulb
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within the specification?
  YES

  Go to 2"Check RAM".

  NO

  Replacing the light bulb with 'light bulb for test', if normal operating condition is confirmed, Replace 'light bulb for test' with 'new light bulb' and go to "VERIFICATION OF VEHICLE REPAIR ".
Check RAM
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Check if DTC is erased after replacing RAM with "RAM for test".
4. Is the DTC erased?
  YES

  Replace "RAM for test" with "new RAM" and go to "VERIFICATION OF VEHICLE REPAIR ".

  NO

  Check connecting condition of connector and go to "VERIFICATION OF VEHICLE REPAIR "
