Oil Temperature Sensor For ECM: Description and Operation

CVVT OIL TEMPERATURE SENSOR (OTS)




DESCRIPTION
The CVVT Oil Temperature Sensor (OTS) is a negative Coefficient thermistor used by the PCM to measure engine oil temperature for the purpose of adjusting CVVT calculations.

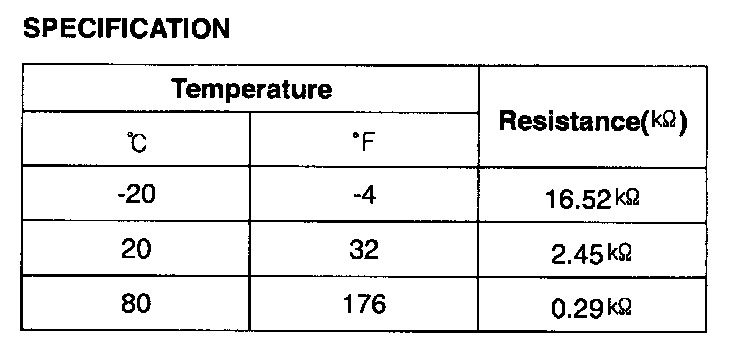

SPECIFICATION

Specification:

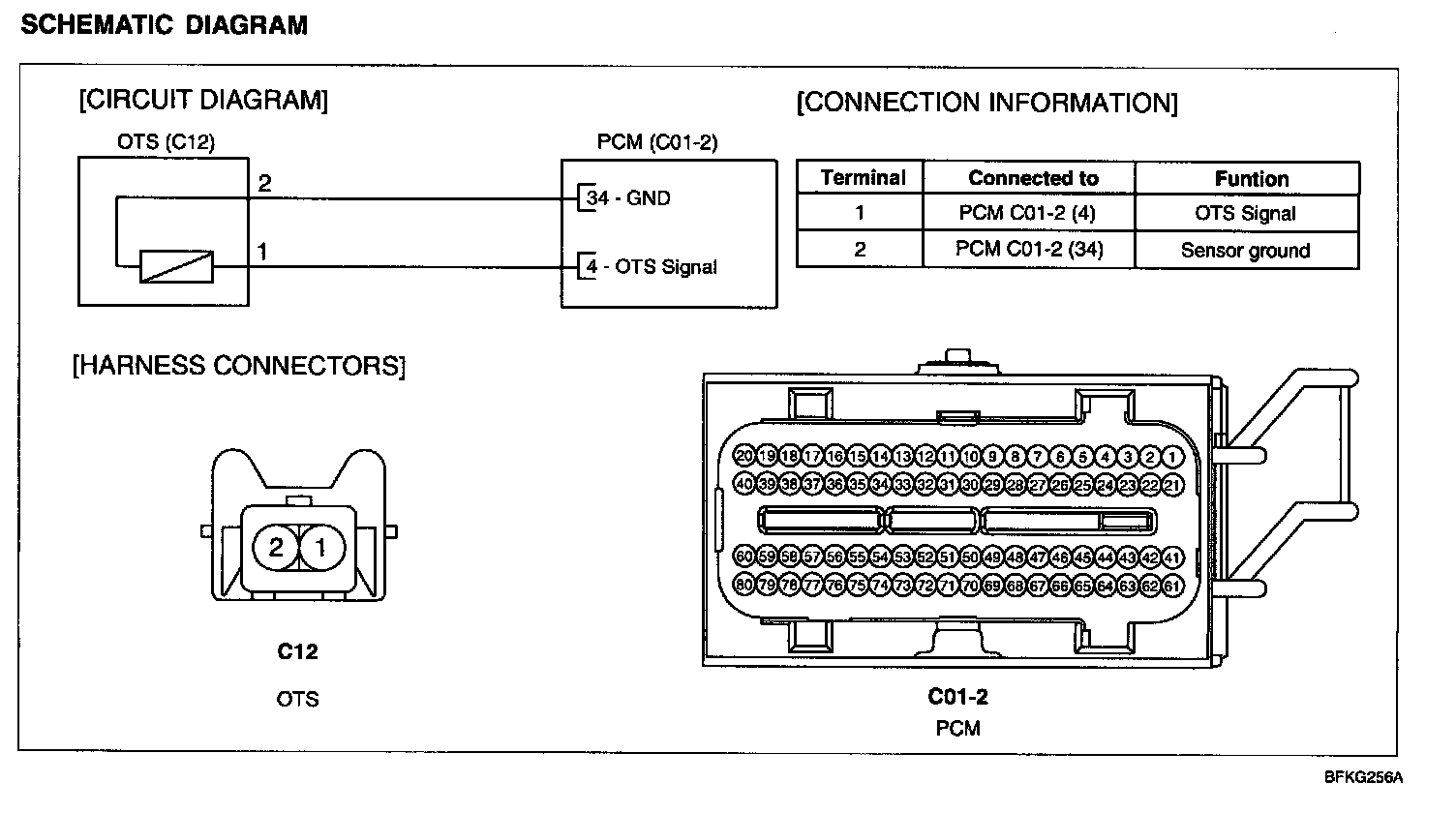

SCHEMATIC DIAGRAM

Schematic Diagram:
