Body Control Module: Service and Repair
BODY CONTROL MODULEREPLACEMENT
1. Disconnect the negative (-) battery terminal.

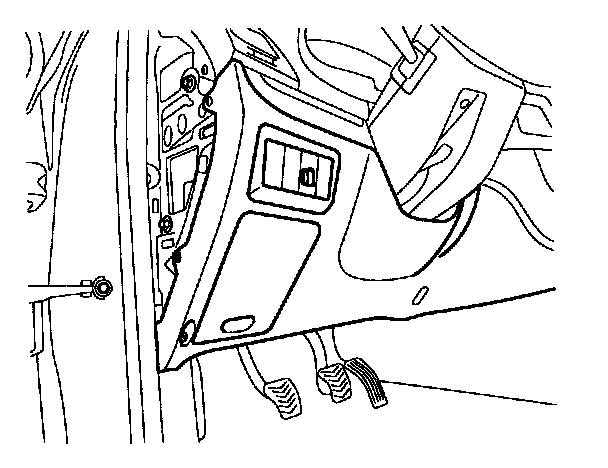

2. Remove the crash pad lower panel (A). Avoid damaging retaining clip.

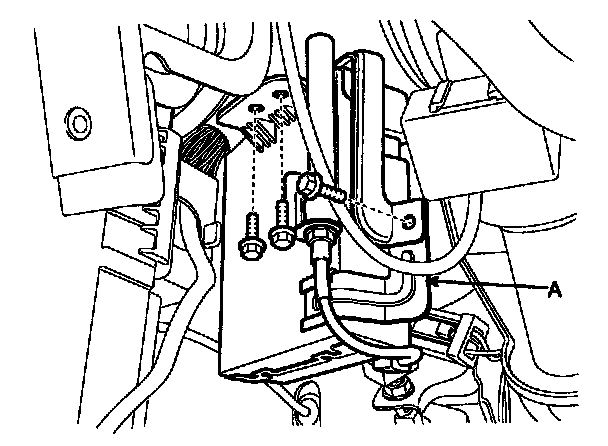

3. Remove the body control module (A) and antenna cable after loosening 3 bolts and disconnecting connector.
4. Installation is the reverse of removal.
