Oil Temperature Sensor For ECM: Testing and Inspection

CVVT OIL TEMPERATURE SENSOR (OTS)

INSPECTION

FUNCTION AND OPERATION PRINCIPLE

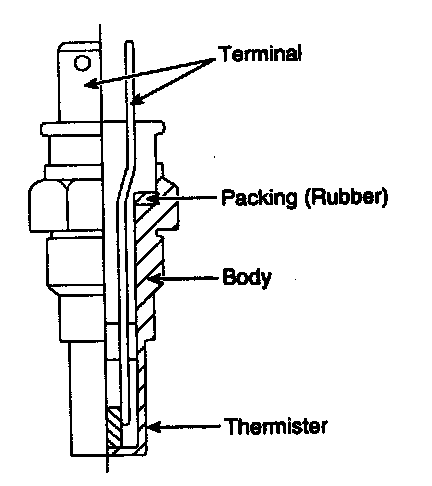

The CVVT Oil Temperature Sensor (OTS) is a negative coefficient thermistor used by the PCM to measure engine oil temperature for the purpose of adjusting CVVT calculations.
