Hyundai
>>
2008
>>
Santa Fe GLS, FWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G6EA-GSL 2.7)
>>
Gasoline Engine Control System
>>
Accelerator Position Sensor (APS)
>>
Inspection
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

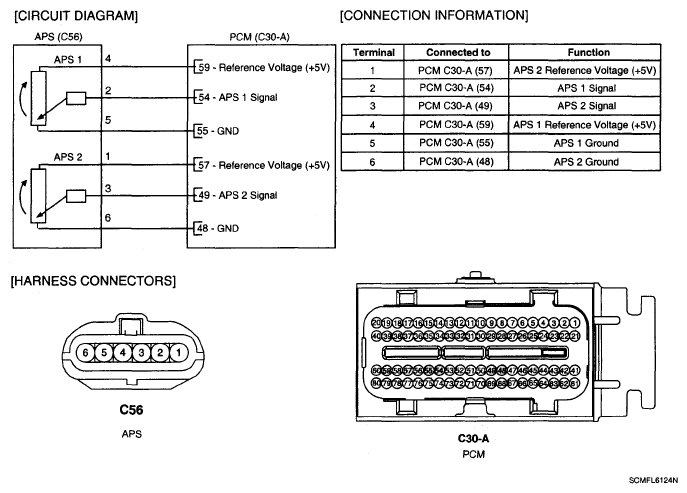

Fig 1: Accelerator Position Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
