Connector Views
Engine Control Module (ECM)ECM HARNESS CONNECTOR

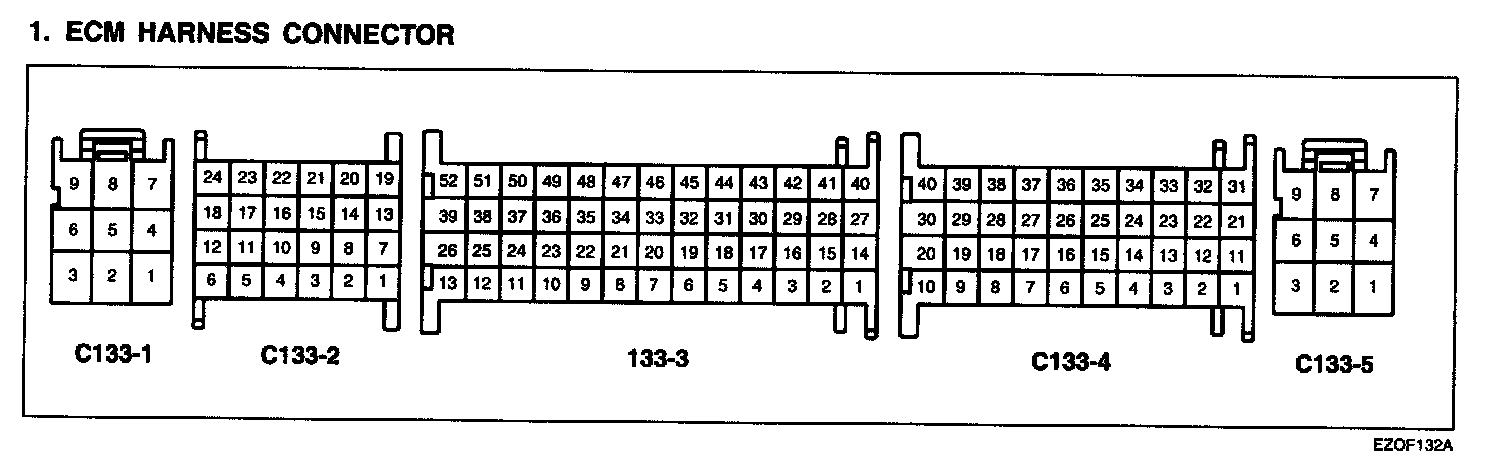

ECM Harness Connector:

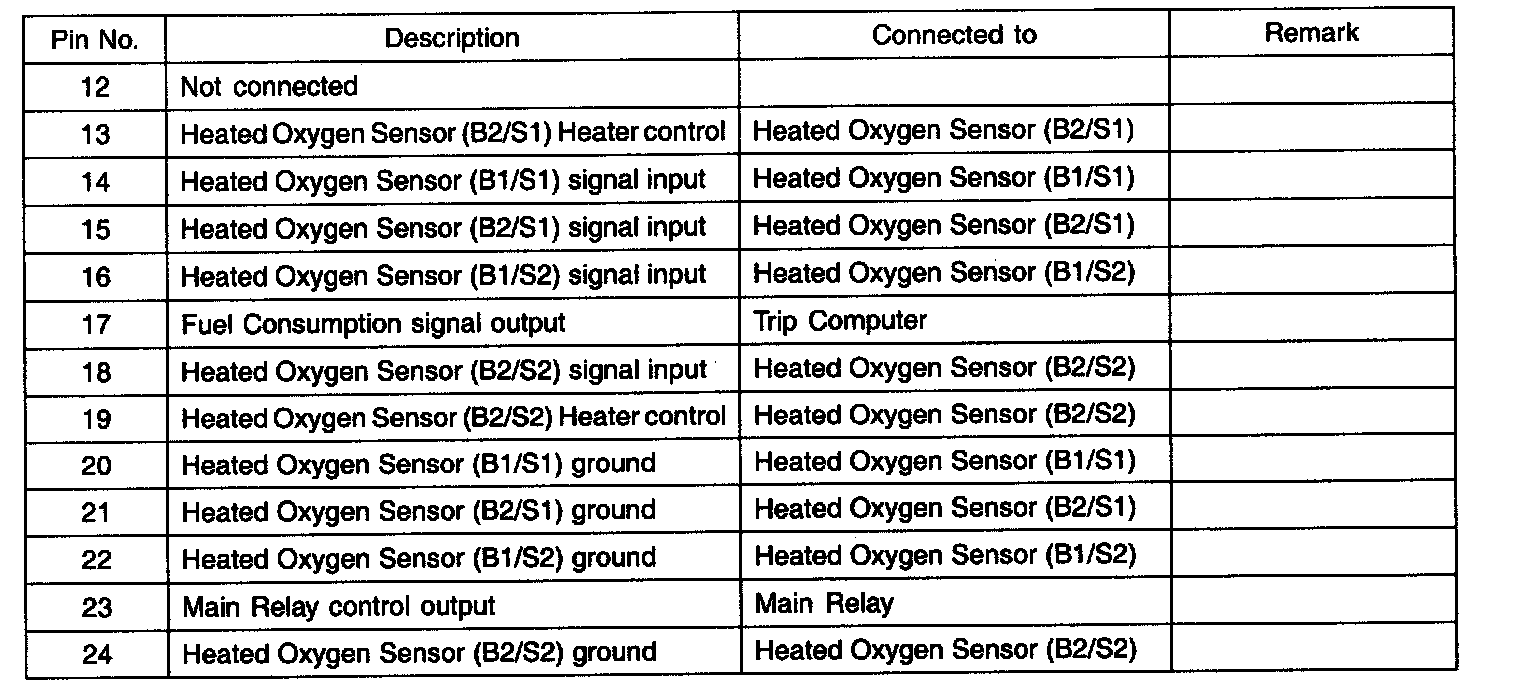

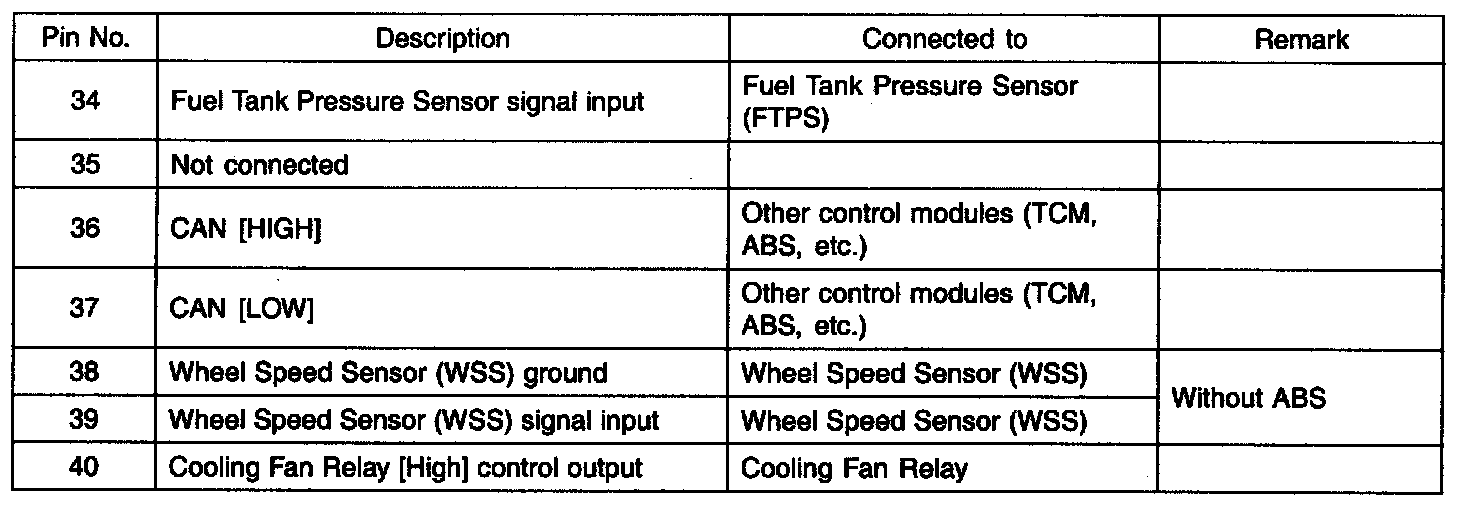

ECM TERMINAL FUNCTION - CONNECTOR [C133 -1]

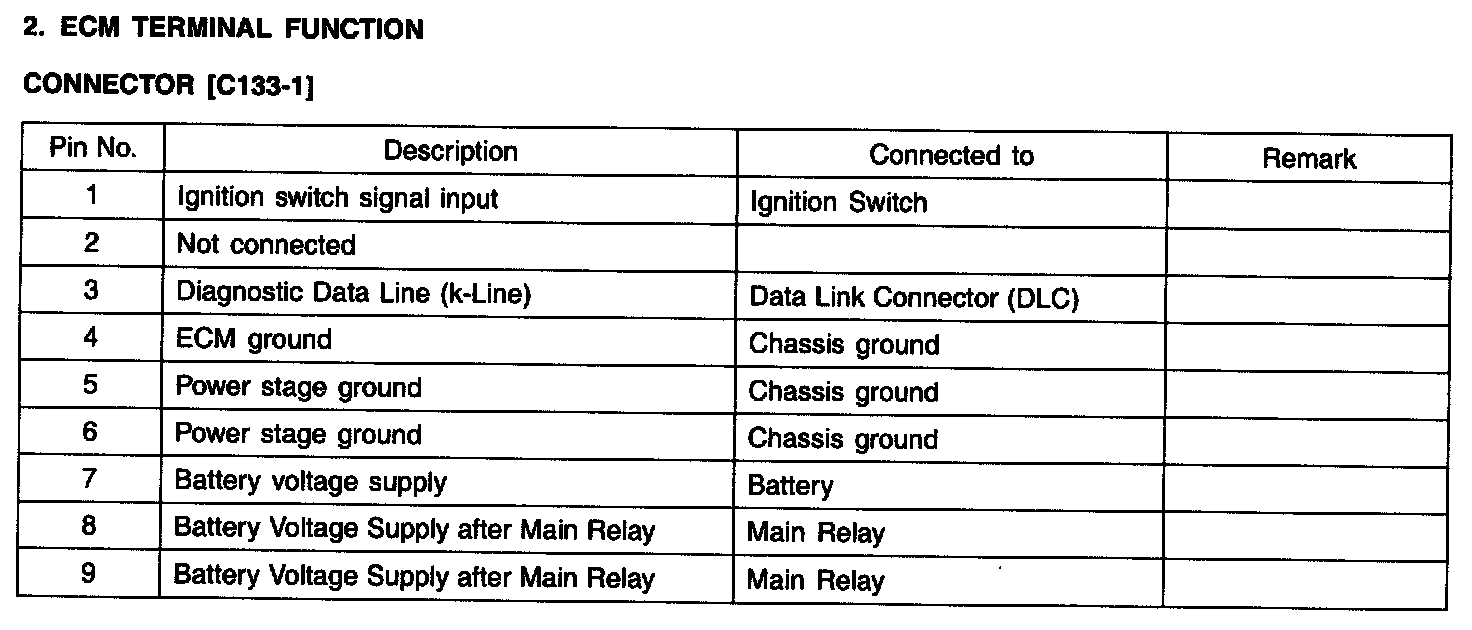

ECM Terminal Function - Connector [C133-1]:
ECM TERMINAL FUNCTION - CONNECTOR [C133 -2]

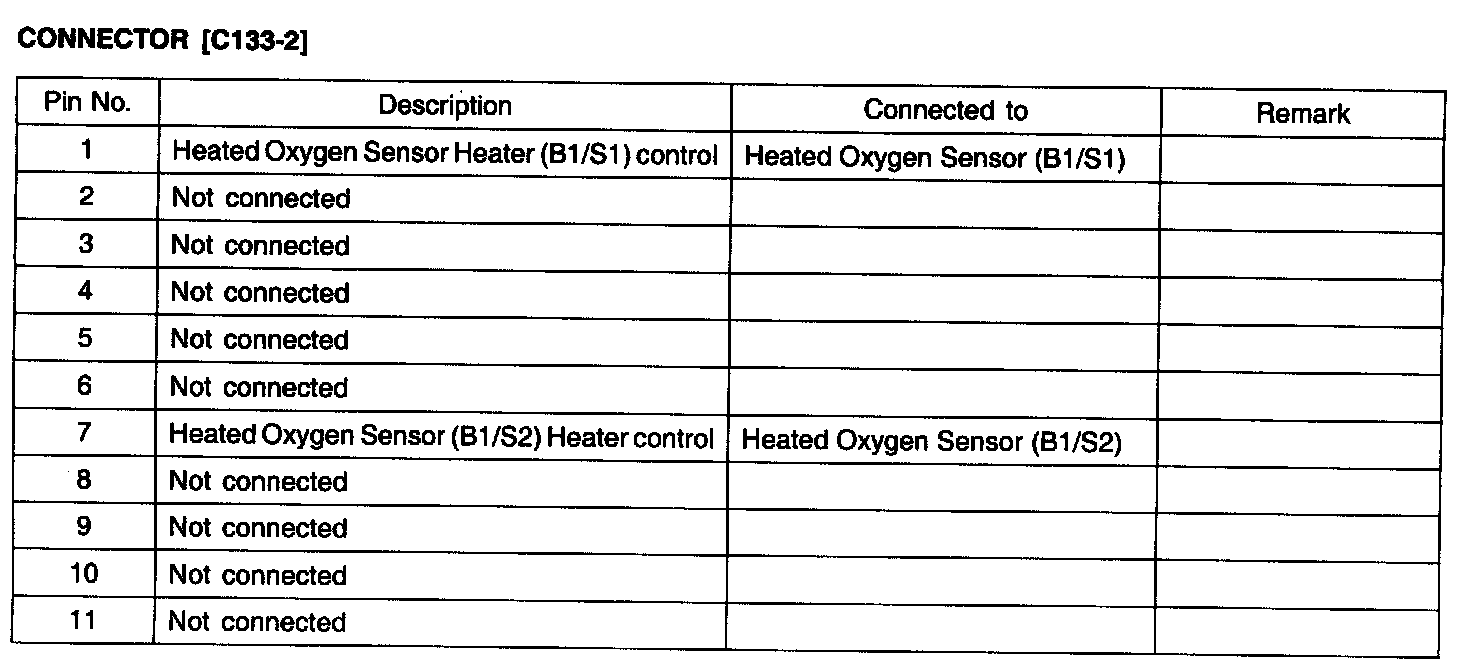

ECM Terminal Function - Connector [C133-2] (Part 1):
ECM Terminal Function - Connector [C133-2] (Part 2):
ECM TERMINAL FUNCTION - CONNECTOR [C133 -3]

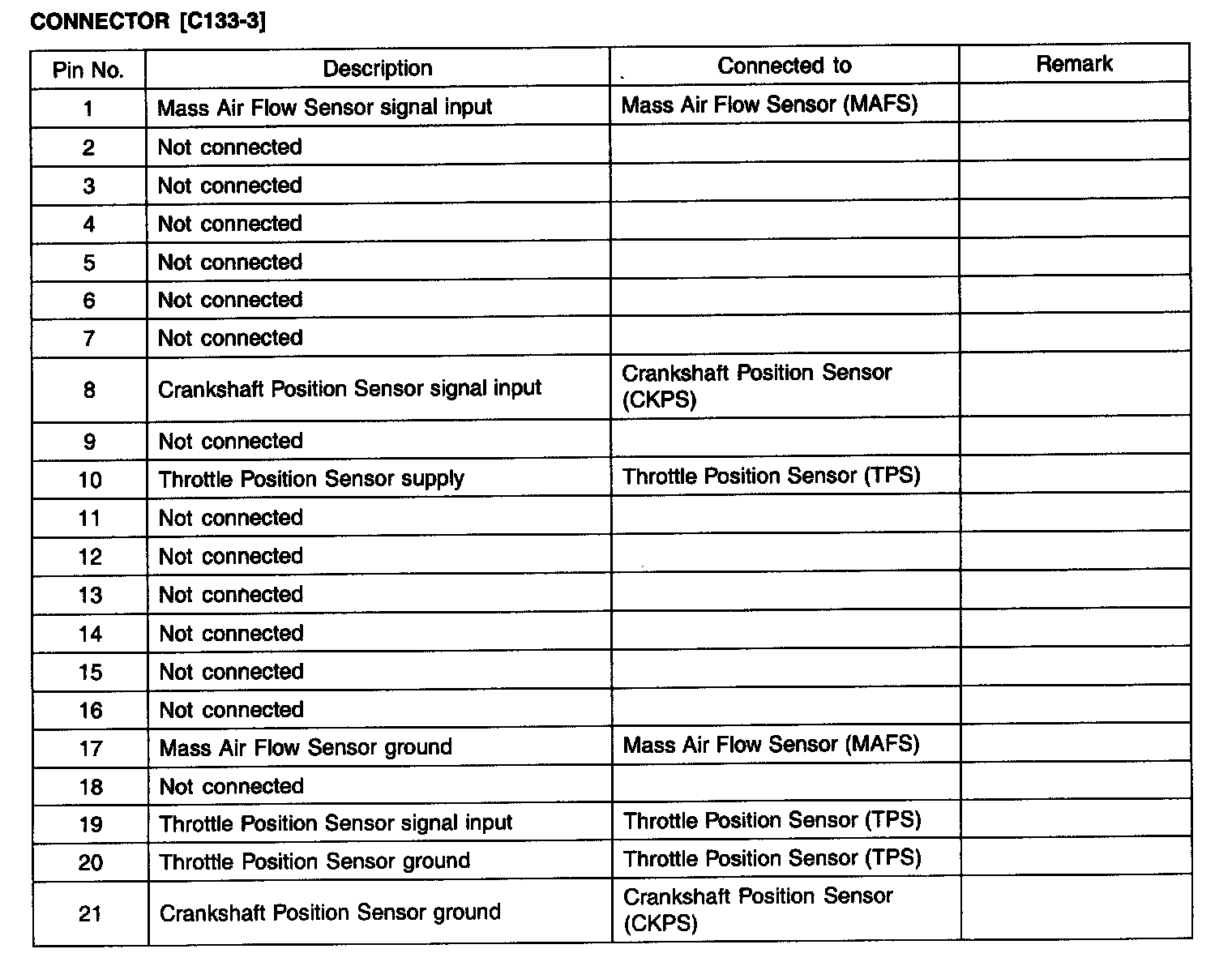

ECM Terminal Function - Connector [C133-3] (Part 1):

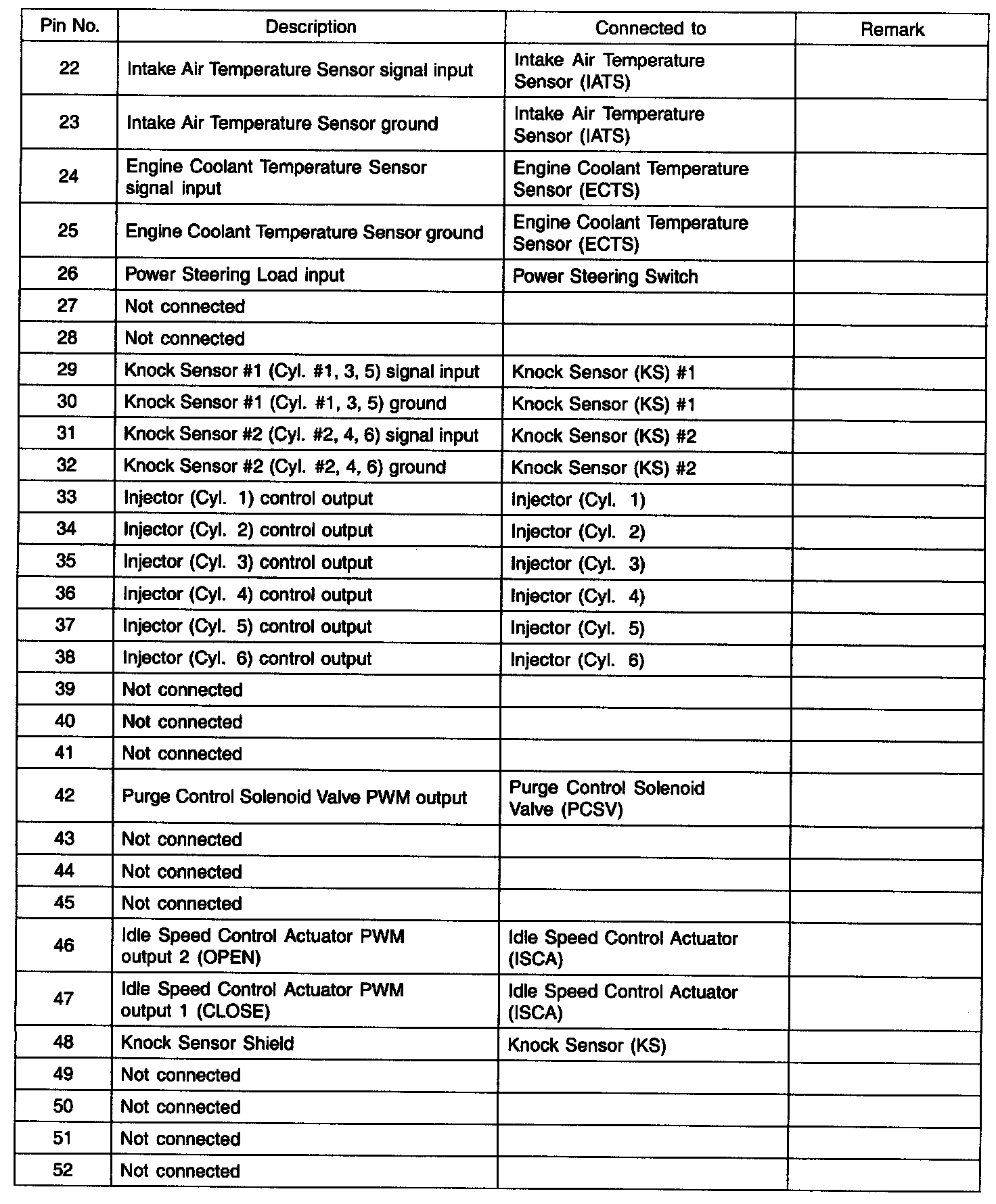

ECM Terminal Function - Connector [C133-3] (Part 2):
ECM TERMINAL FUNCTION - CONNECTOR [C133 -4]

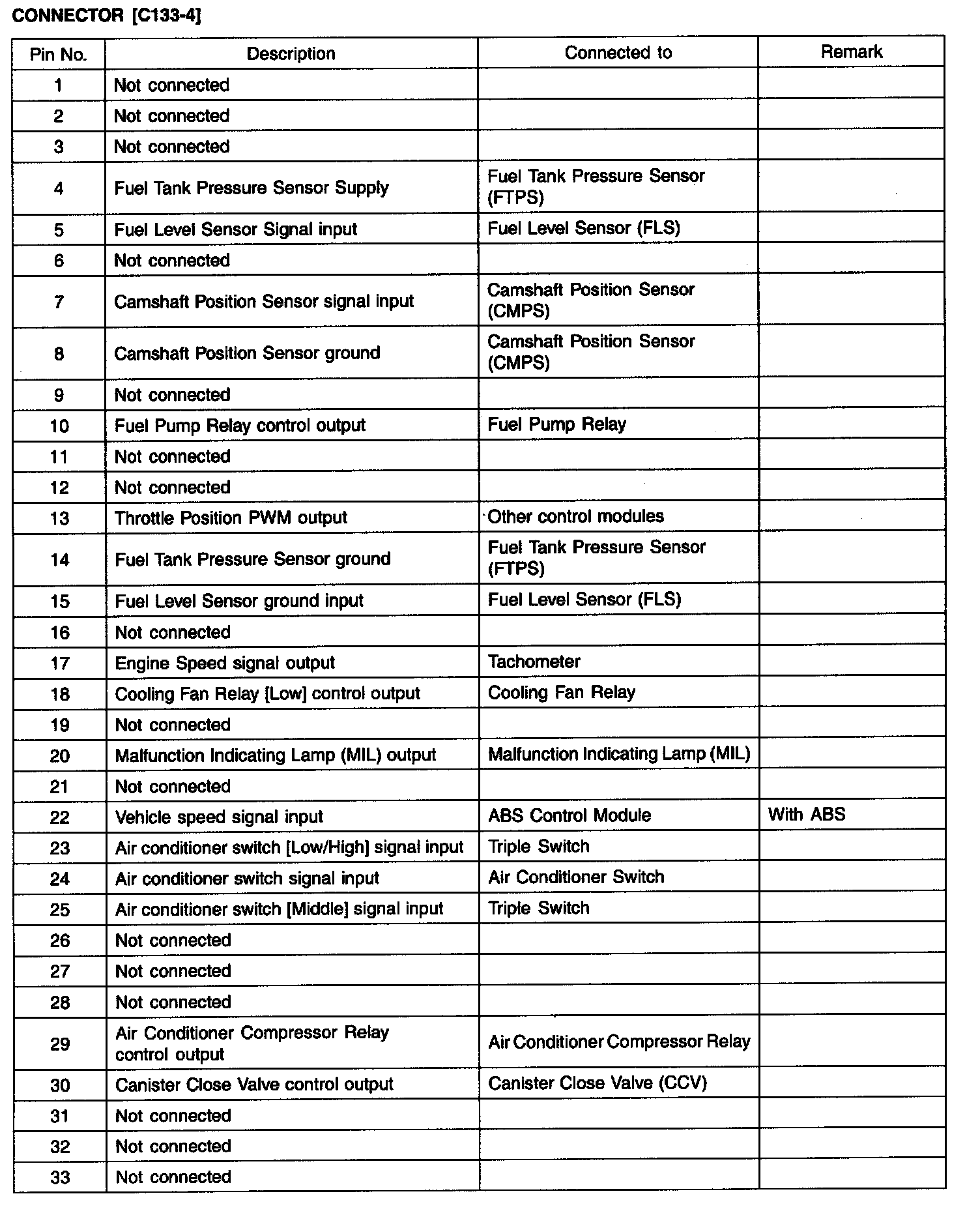

ECM Terminal Function - Connector [C133-4] (Part 1):
ECM Terminal Function - Connector [C133-4] (Part 2):
ECM TERMINAL FUNCTION - CONNECTOR [C133 -5]

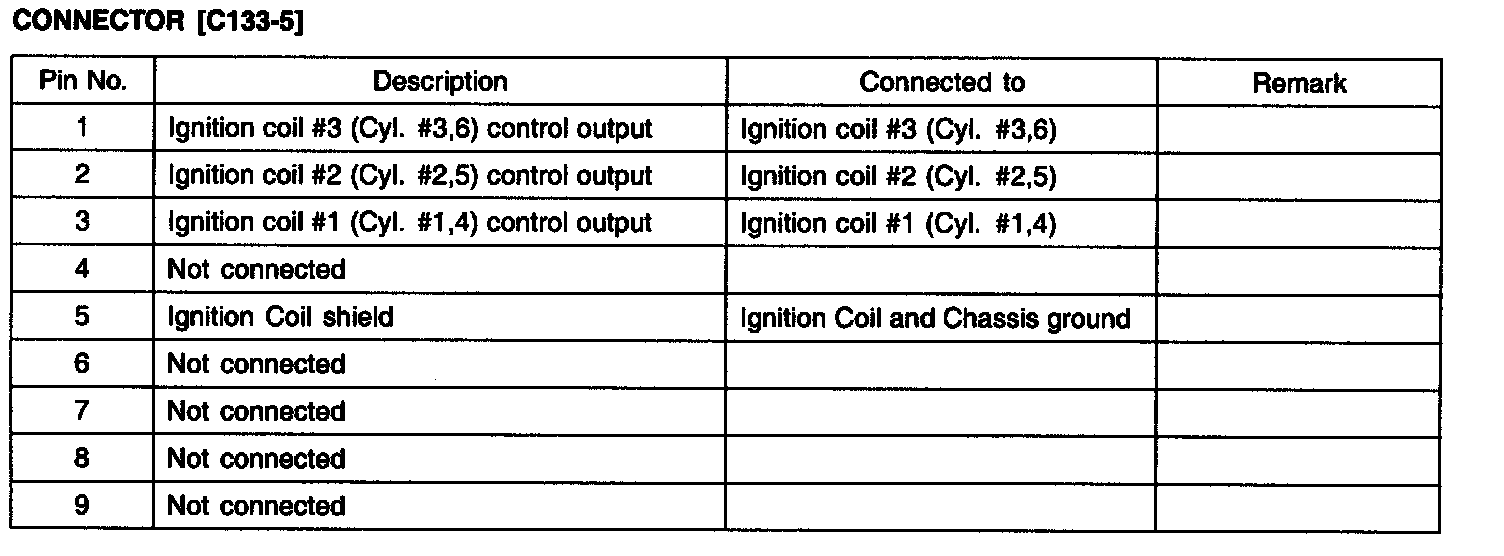

ECM Terminal Function - Connector [C133-5]:

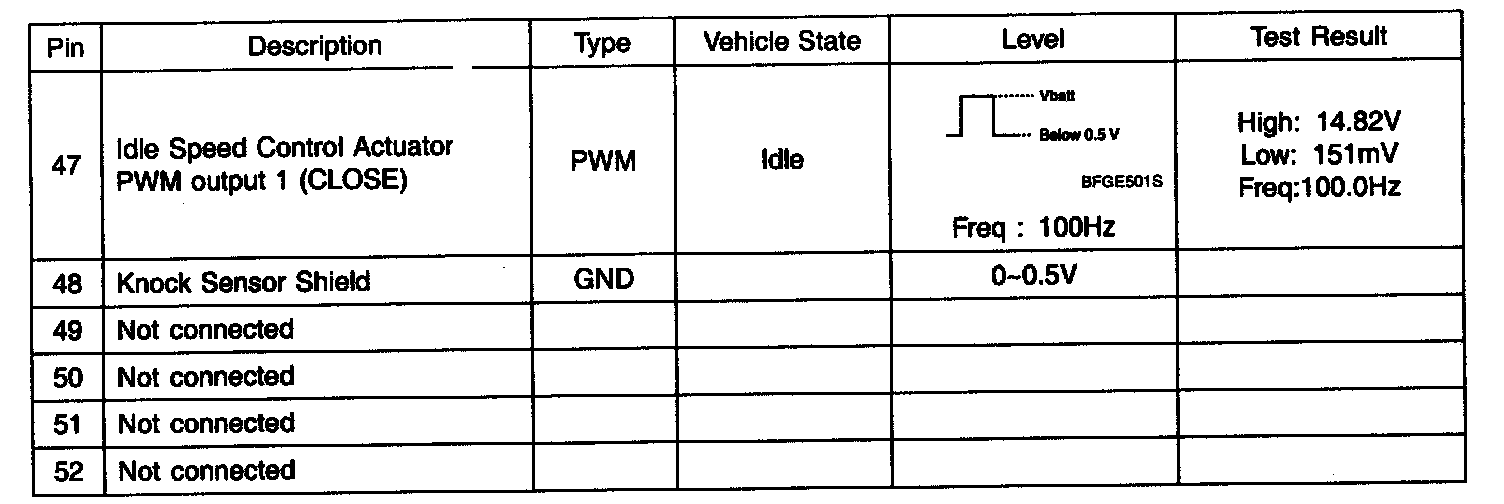

ECM TERMINAL INPUT/OUTPUT SIGNAL- CONNECTOR [C133 -1]

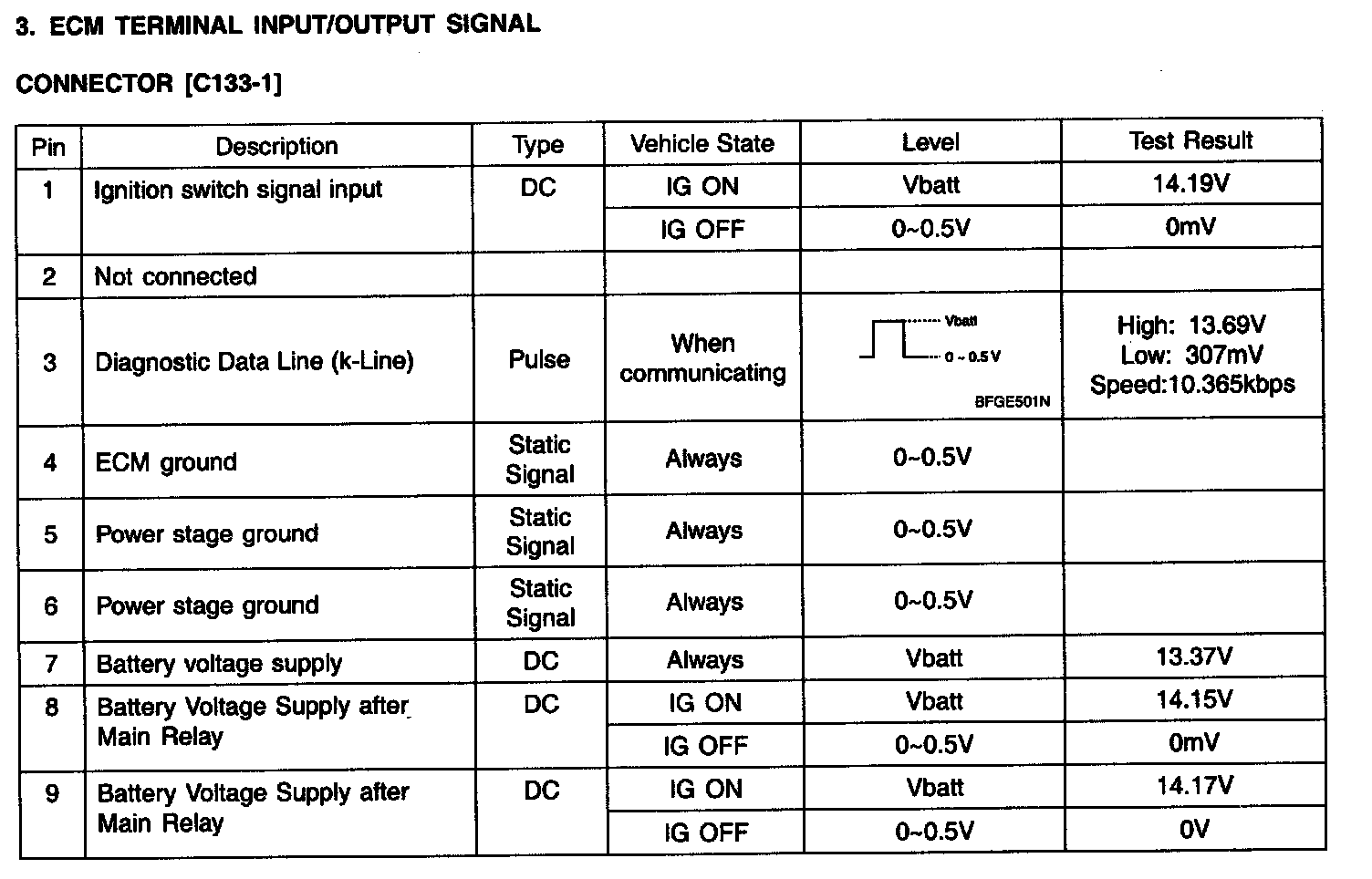

ECM Terminal Input/Output Signal - Connector [C133-1]:
ECM TERMINAL INPUT/OUTPUT SIGNAL- CONNECTOR [C133 -2]

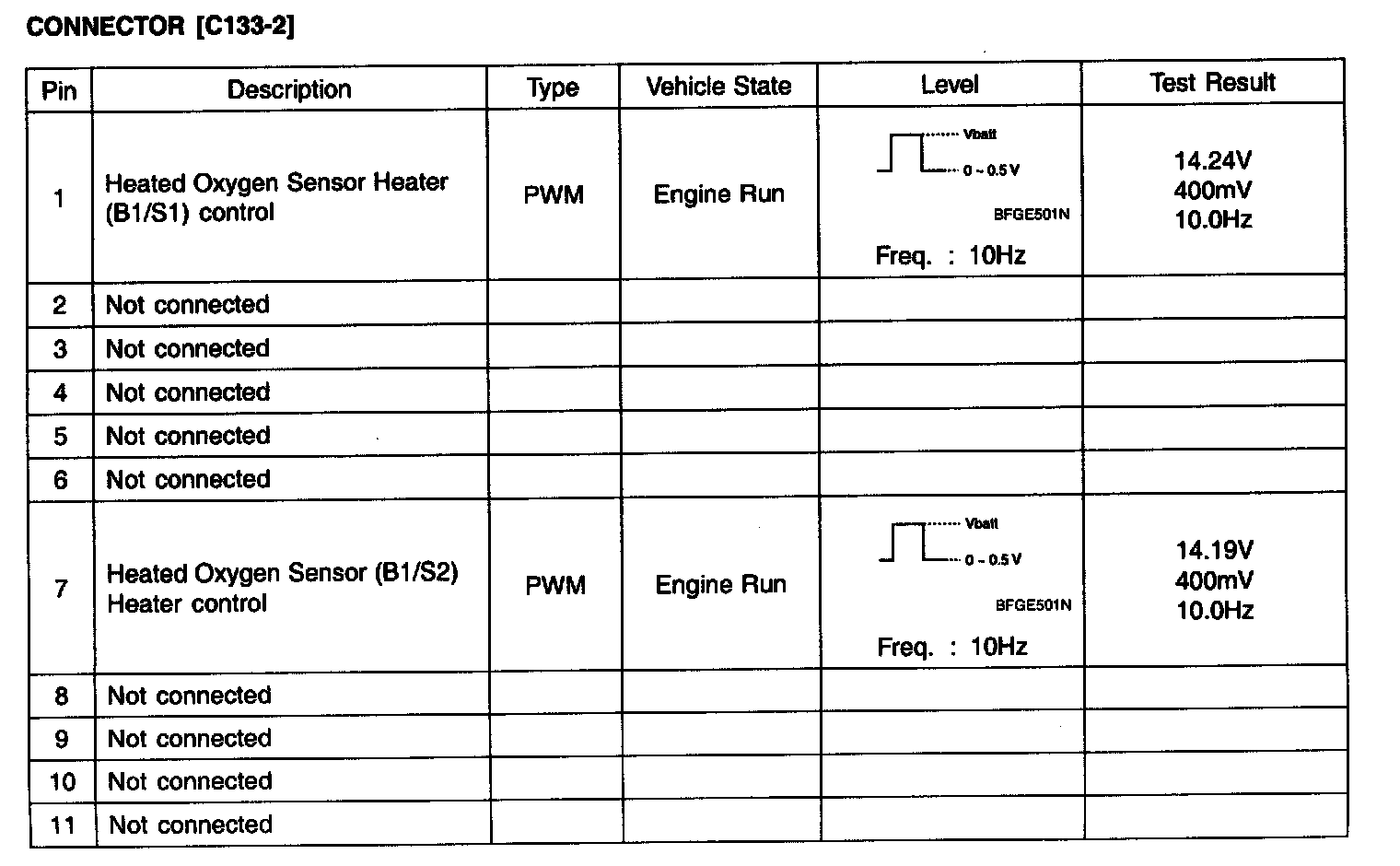

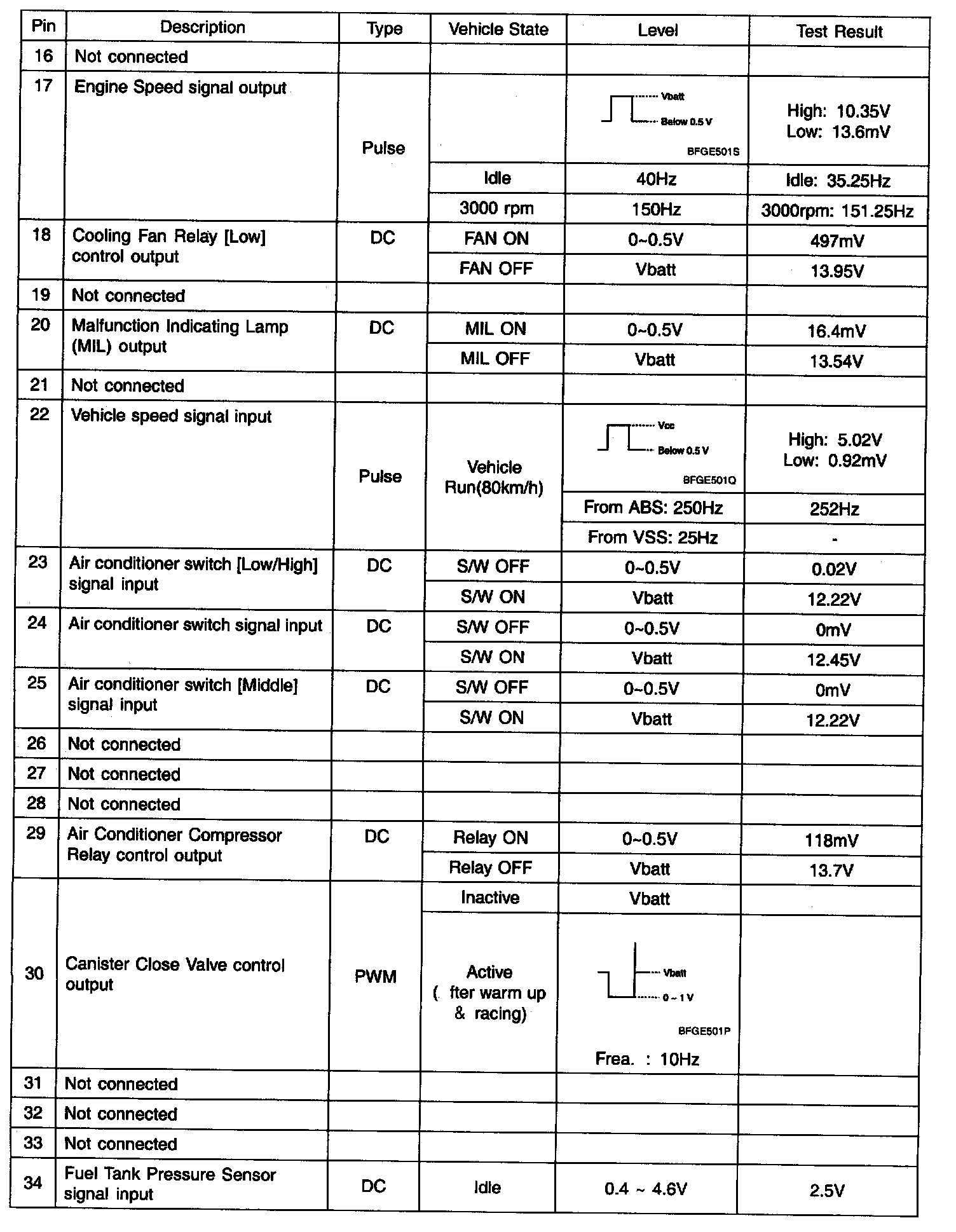

ECM Terminal Input/Output Signal - Connector [C133-2] (Part 1):

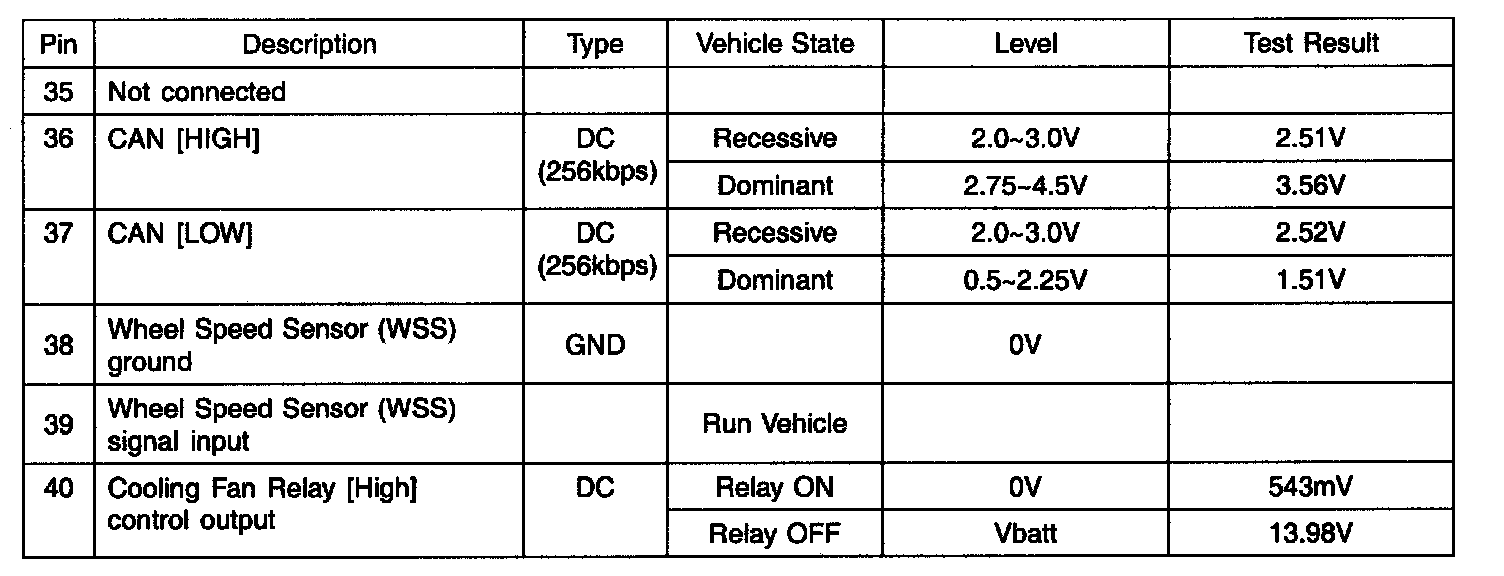

ECM Terminal Input/Output Signal - Connector [C133-2] (Part 2):
ECM TERMINAL INPUT/OUTPUT SIGNAL- CONNECTOR [C133 -3]

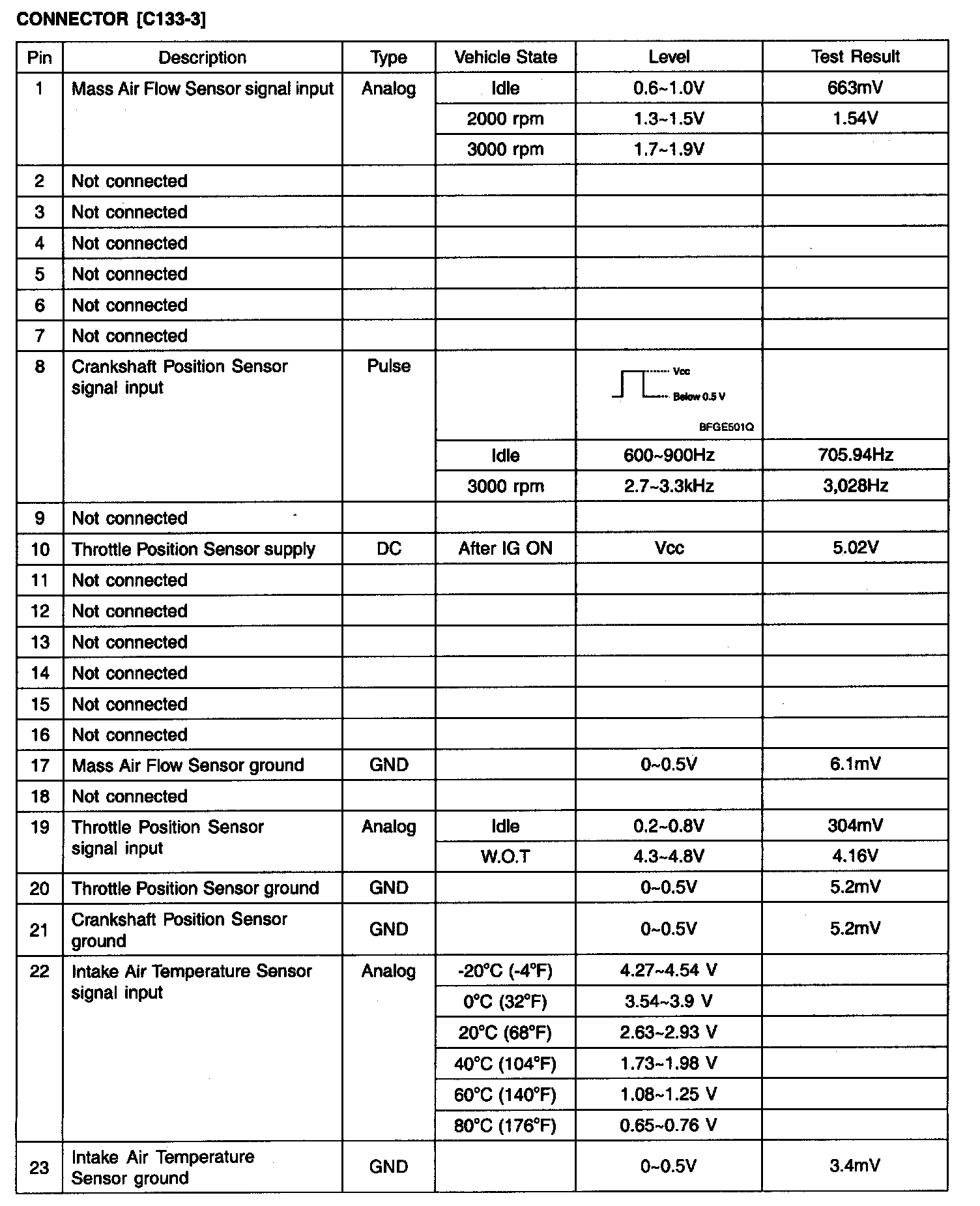

ECM Terminal Input/Output Signal - Connector [C133-3] (Part 2):

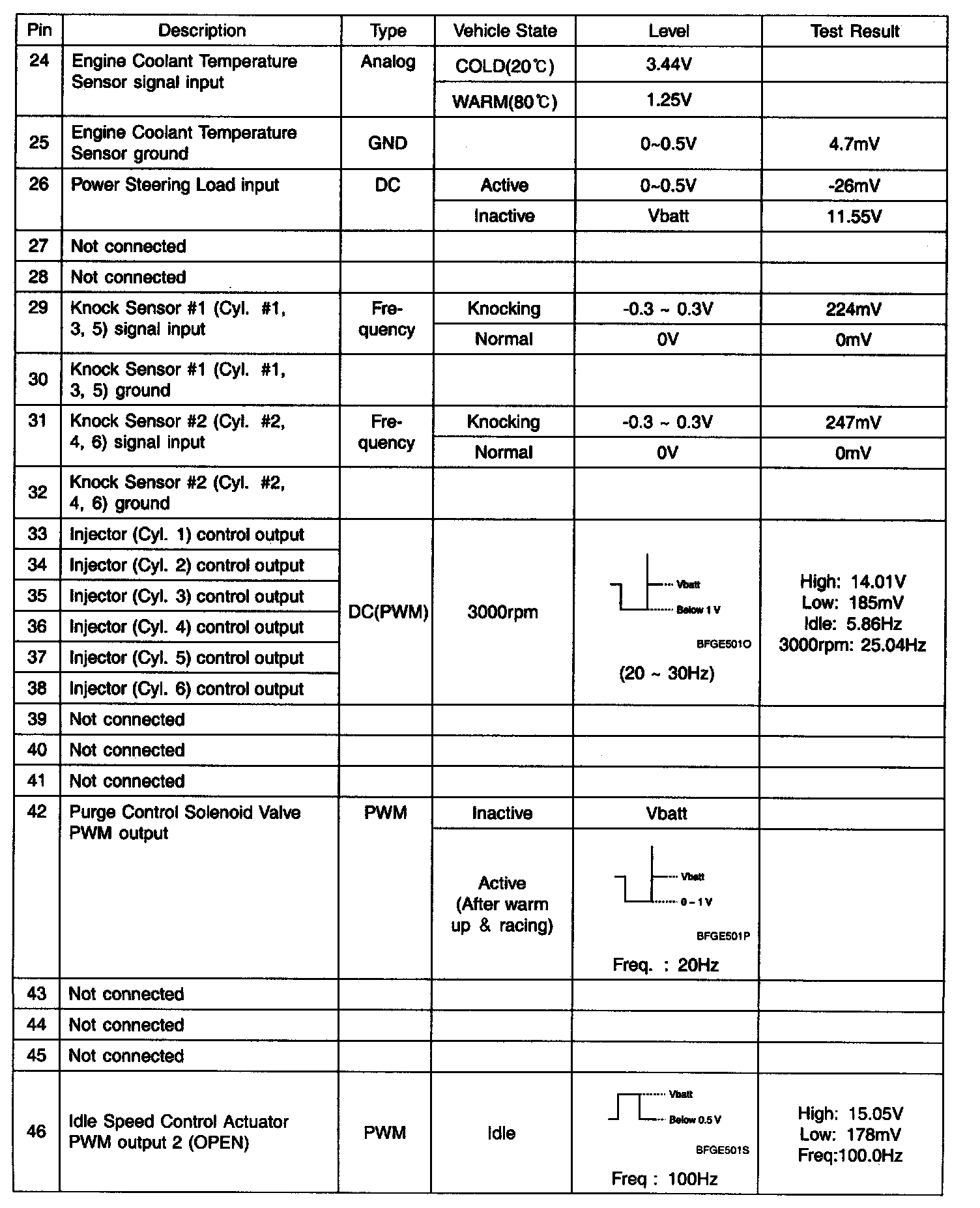

ECM Terminal Input/Output Signal - Connector [C133-3] (Part 2):
ECM Terminal Input/Output Signal - Connector [C133-3] (Part 3):
ECM TERMINAL INPUT/OUTPUT SIGNAL- CONNECTOR [C133 -4]

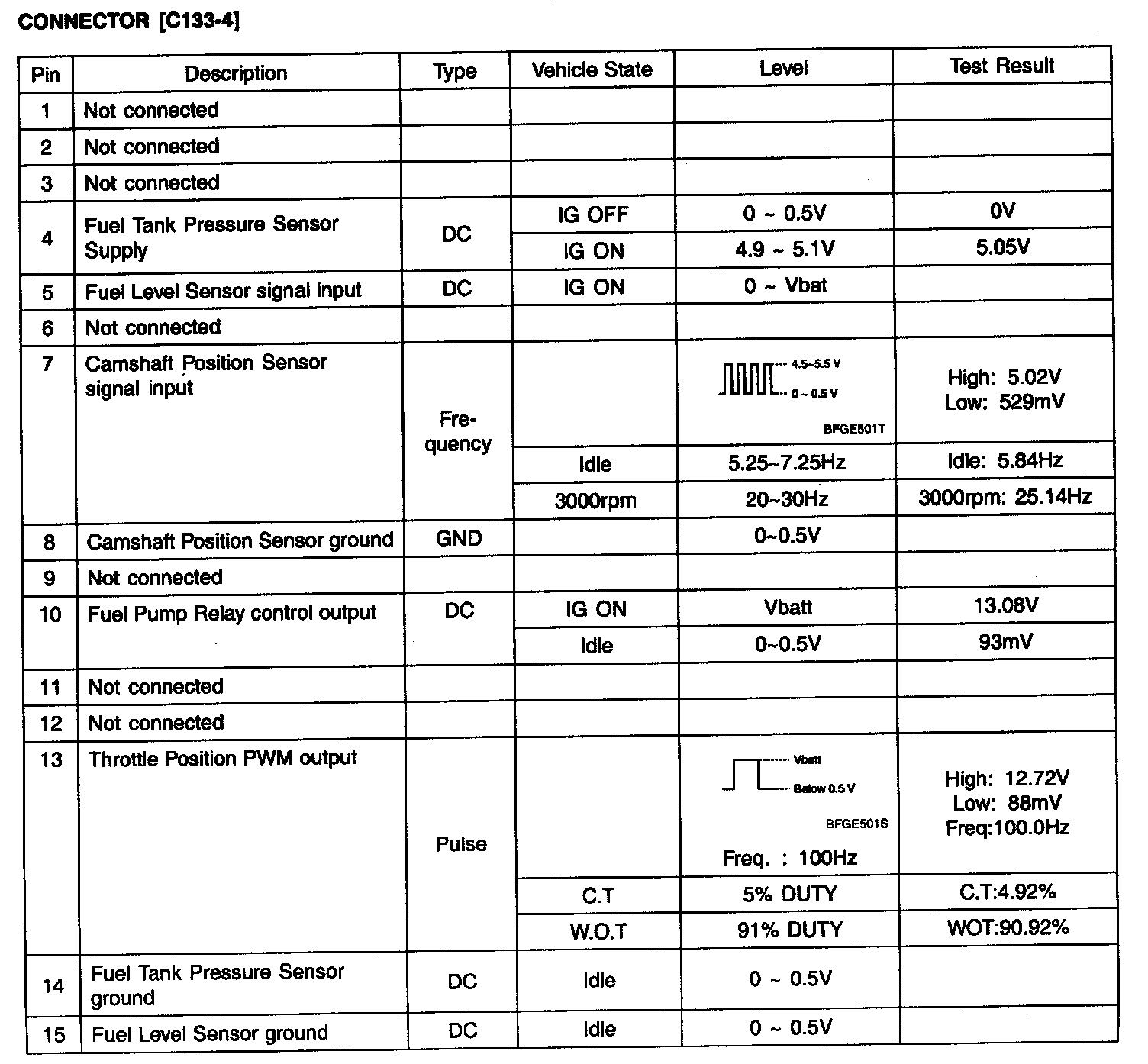

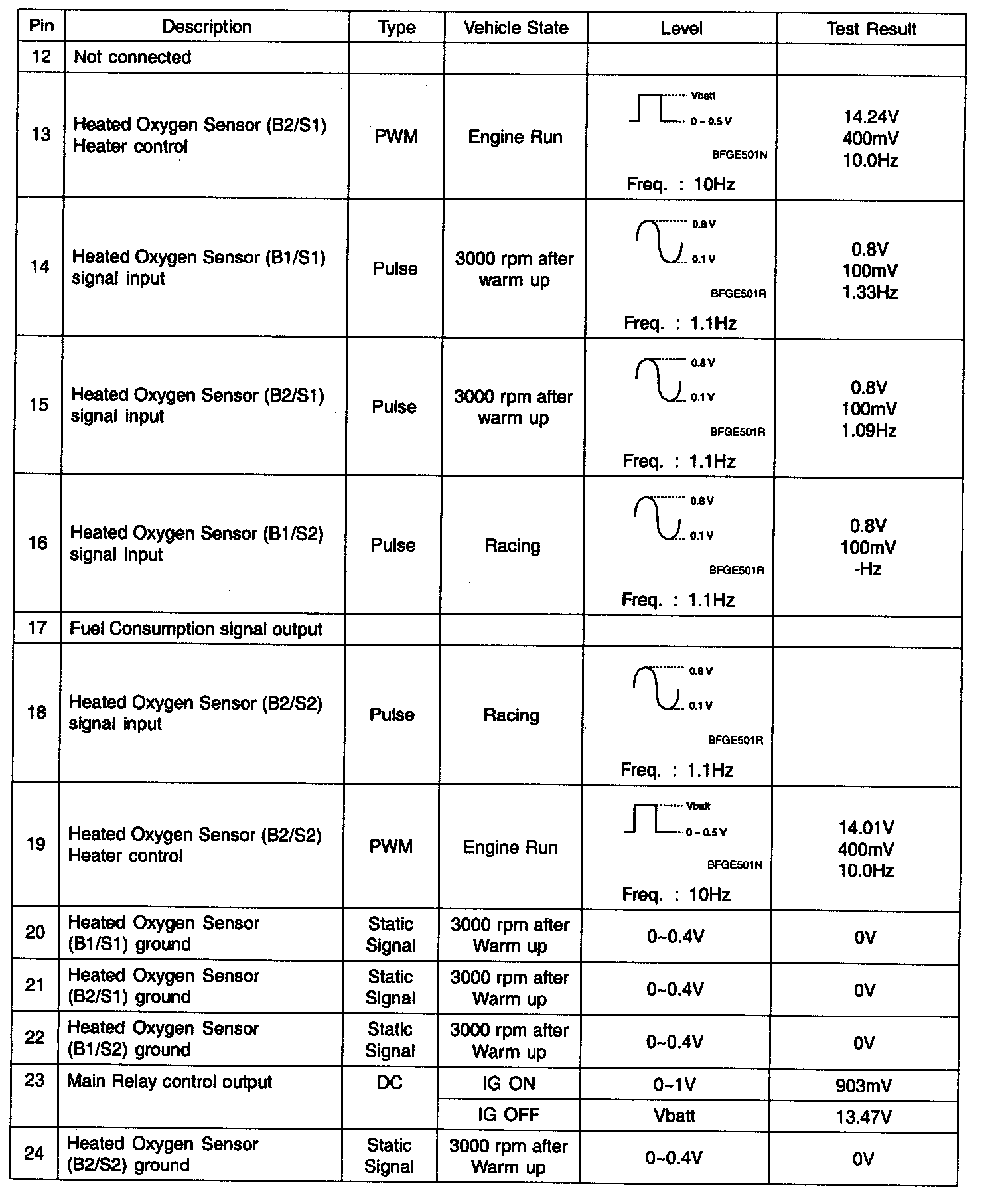

ECM Terminal Input/Output Signal - Connector [C133-4] (Part 1):
ECM Terminal Input/Output Signal - Connector [C133-4] (Part 2):
ECM Terminal Input/Output Signal - Connector [C133-4] (Part 3):
ECM TERMINAL INPUT/OUTPUT SIGNAL- CONNECTOR [C133 -5]

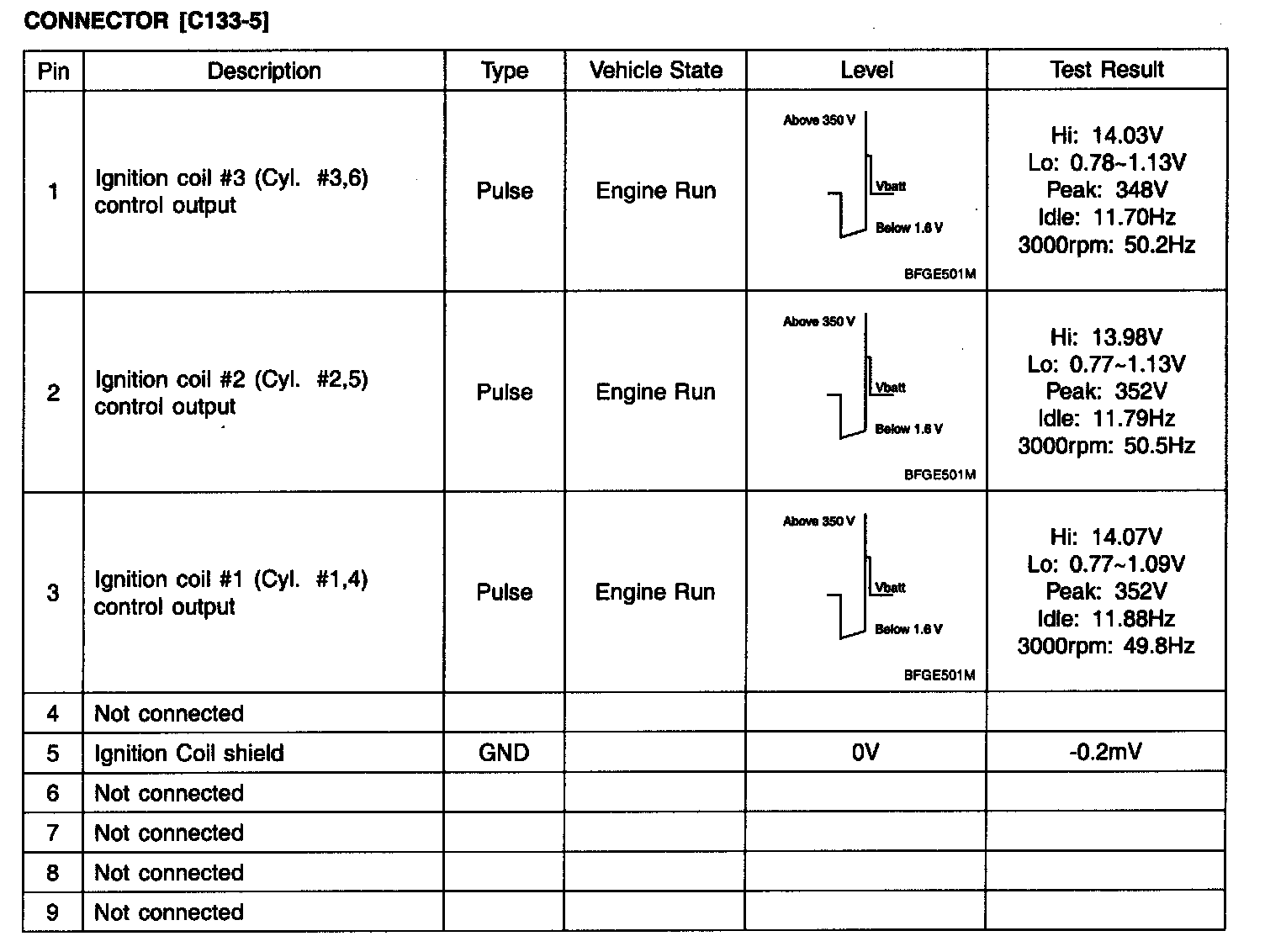

ECM Terminal Input/Output Signal - Connector [C133-5]:
