Intake Manifold

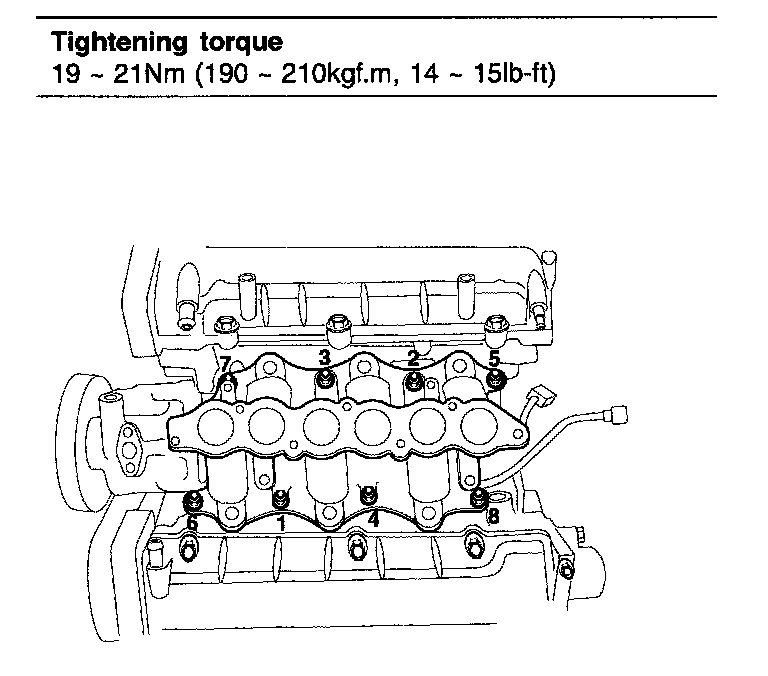

Intake manifold to cylinder head 19-21 Nm (1.9-2.1 kgf.m, 14-15 lb-ft)
Throttle body to surge tank bolt 15-20 Nm (1.5-2.0 kgf.m, 11-14 lb-ft)
