Block Diagram (Can)

WARNING: This page is about a different variant/trim than selected.

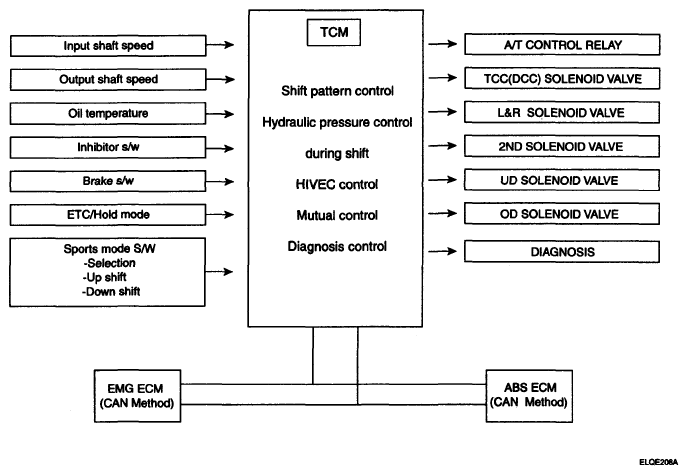

Fig 1: Electronic Control System Block Diagram
G04811190Courtesy of HYUNDAI MOTOR CO.
