Crash Pad

Replacement

Heater Control Unit Replacement
1. Disconnect the center facia lower tray(B).

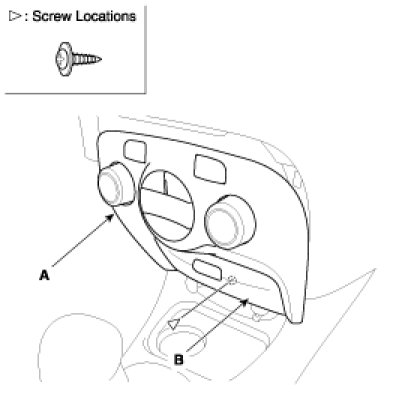

2. Remove the center facia lower panel (A).

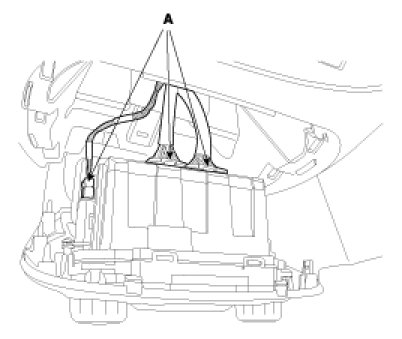

3. Disconnect the connector (A), then remove the center facia panel (B).

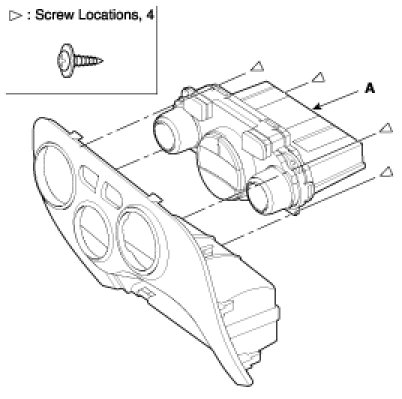

4. Loosen the heater control unit mounting screw. remove the heater control unit (A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
