Body Control Module: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

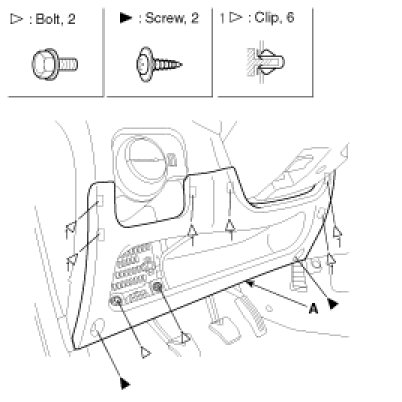

2. Remove the crash pad lower panel (A) .

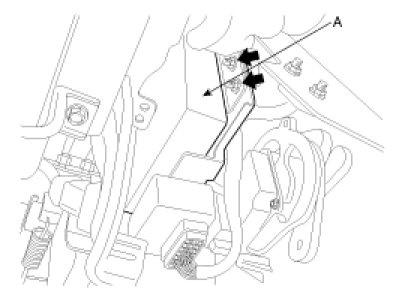

3. Remove the body control module (A) after loosening 2 nuts.




4. Installation is the reverse of removal.
