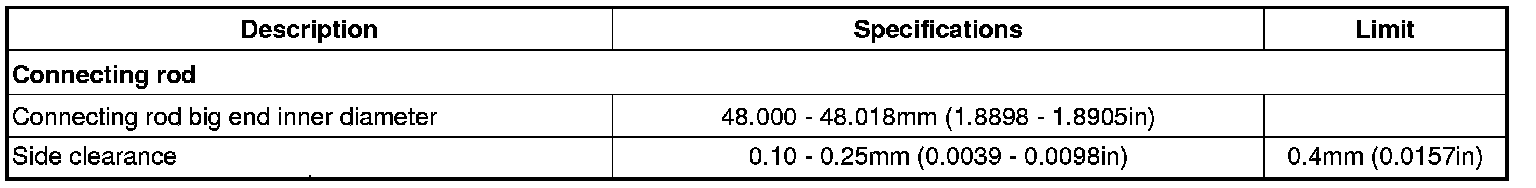

Connecting Rod
Connecting Rod
End play
Standard
0.1 - 0.25 mm (0.0039 - 0.0098 in)
Maximum
0.4 mm (0.0157 in)
