Exhaust Manifold





Exhaust Manifold

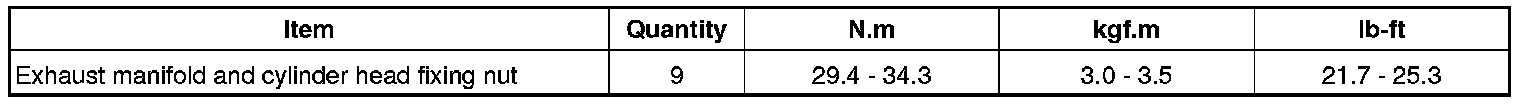

Tightening torque 29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb-ft)

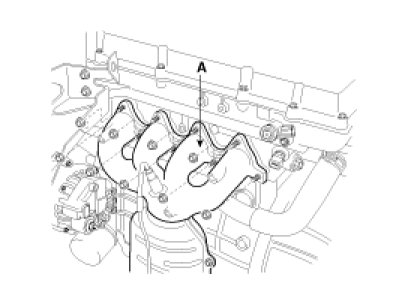

Exhaust Manifold
