Schematic Diagram

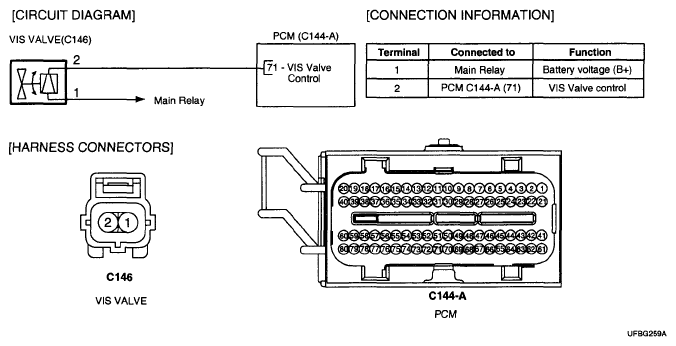

Fig 1: Variable Intake Solenoid (VIS) Valve - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
