Power Circuit Inspection

1. IG "OFF" and disconnect Auto cruise switch connector.
2. IG "ON" & ENG "OFF"
3. Measure voltage between terminal 2 of auto cruise s-witch harness connector and chassis ground.

   Specification: Approx. B+

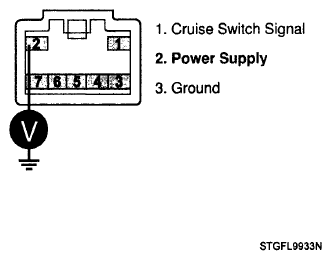

   Fig 1: Measuring Voltage Between Terminal 2 Of Auto Cruise Switch Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR CO.
4. Is the measured voltage within specification?

YES

• Go to "SIGNAL CIRCUIT INSPECTION " Procedure.

NO

• Repair open or short to ground in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
