Immobilizer Control Unit: Replacement

Disconnect the negative (-) battery terminal.
Remove the driver crash pad lower panel (A) after removing side cover. (Refer to the CRASH PAD )

Fig 1: Identifying Driver Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Disconnect connectors of lower panel.

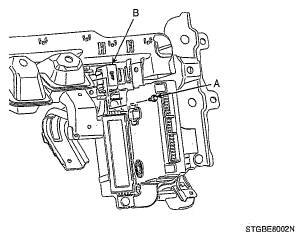

Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (B) mounted on the left side cowl cross bar after loosening a shear bolt (A).

Fig 2: Identifying SMARTRA Unit
Courtesy of HYUNDAI MOTOR CO.
Installation is the-reverse of removal procedure.
