Fuel Tank: Removal

Preparation
1. Remove the Service Cover (A) in the trunk.

  Fig 1: Identifying Service Cover
  Courtesy of HYUNDAI MOTOR CO.
2. Disconnect the Fuel Pump Connector (A).

  Fig 2: Identifying Fuel Pump Connector
  Courtesy of HYUNDAI MOTOR CO.
3. Start the engine and wait until fuel in fuel line is exhausted.
4. After the engine stalls, turn the ignition switch OFF.

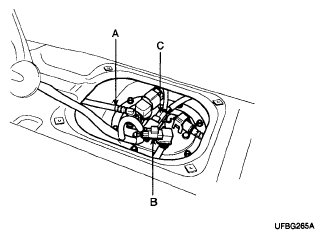

Disconnect the Fuel Feed Quick-Connector (A), Fuel Tank Pressure Sensor Connector (B) and Fuel Pump & Sub Fuel Sender Connector (C).

Fig 3: Identifying Fuel Feed Quick-Connector And Fuel Tank Pressure Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Lift the vehicle.
Remove the center and main mufflers (Refer to EXHAUST MANIFOLD ).

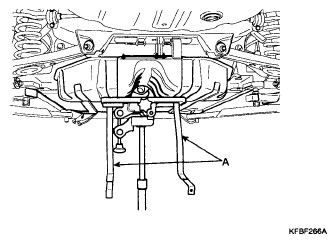

Support the fuel tank with a jack and remove the Fuel Tank band (A).

Fig 4: Identifying Fuel Tank Band
Courtesy of HYUNDAI MOTOR CO.

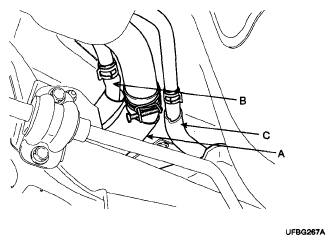

Disconnect the Fuel Feed Hose (A), Leveling Hose (B) and Canister Ventilation Hose (C).

Fig 5: Identifying Fuel Feed Hose, Leveling Hose And Canister Ventilation Hose
Courtesy of HYUNDAI MOTOR CO.
Disconnect the ventilation hose connecting the separator with the canister.
By moving the jack down slowly, remove the Fuel Tank from the vehicle.
