Schematic Diagram

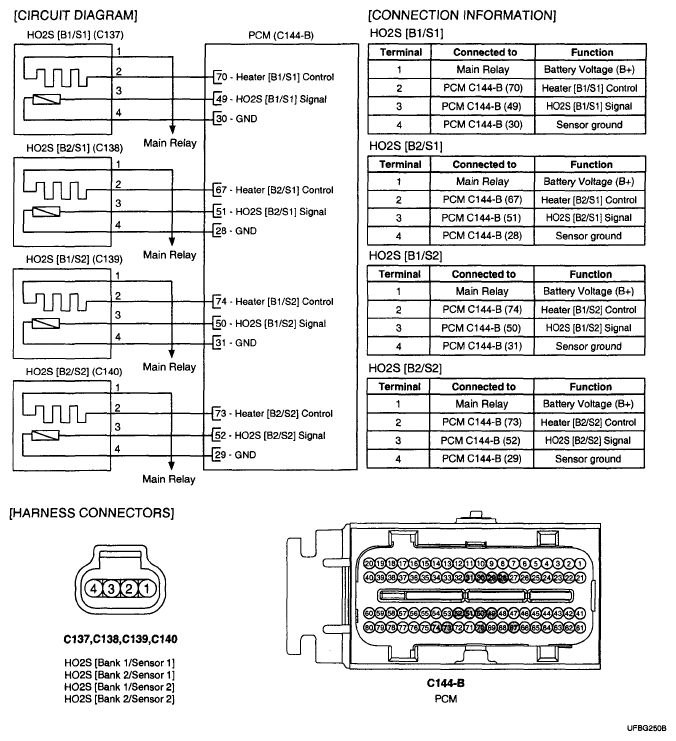

Fig 1: Heated Oxygen Sensor (HO2S) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
