Engine Control/Fuel System (G6DB/G6DA - GSL 3.3/3.8)
>>
Gasoline Engine Control System
>>
Purge Control Solenoid Valve (PCSV)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

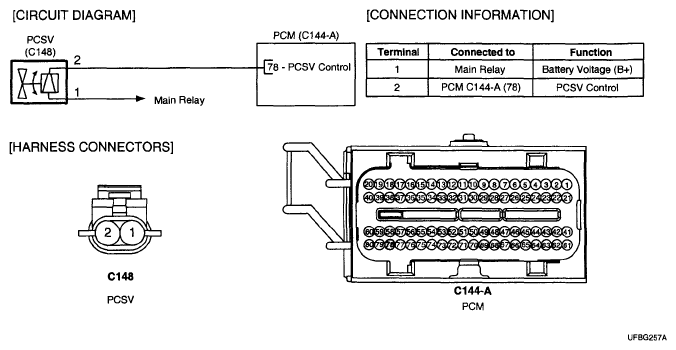

Fig 1: Purge Control Solenoid Valve (PCSV) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
