Overhead Console Lamp Replacement





Overhead Console Lamp Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

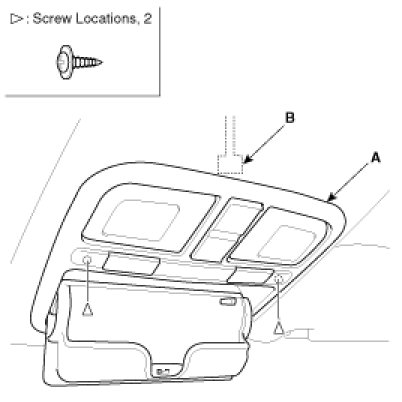

1. Remove the overhead console
A. Remove the screw.
B. Pull out the roof console (A).
C. Disconnect the connector (B).




2. Installation is the reverse of removal.
