Component Tests and General Diagnostics

Inspection

Burglar Horn

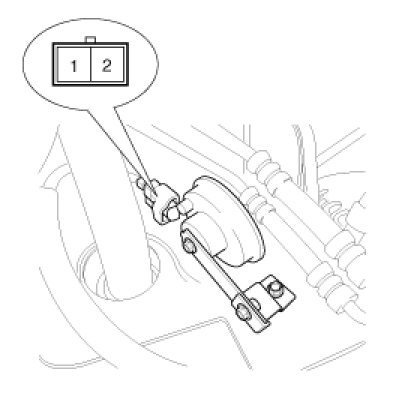

1. Remove the burglar horn after removing 2 bolts and disconnect the 2P connector from the burglar horn.
2. Test the burglar horn by connecting battery power to the terminal 1 and ground the terminal 2.




3. The burglar horn should make a sound. If the burglar horn fails to make a sound replace it.
