Axle Shaft

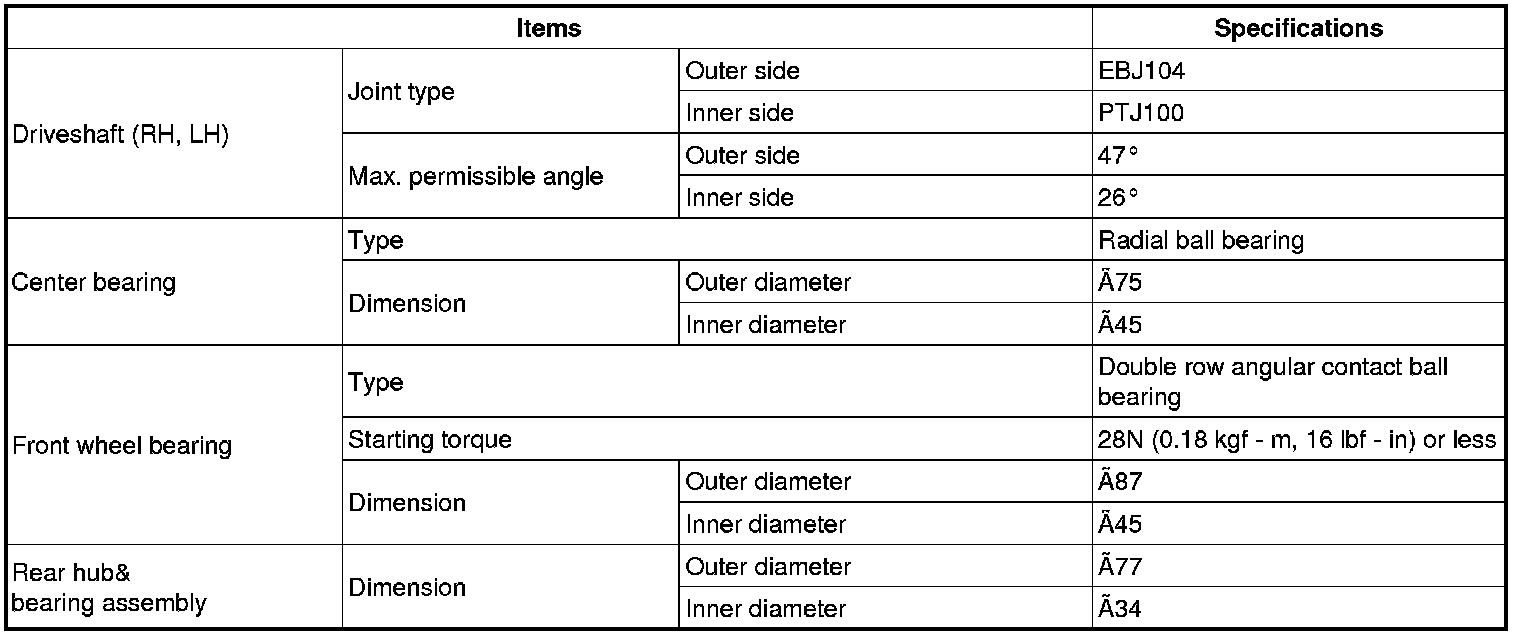

Specifications

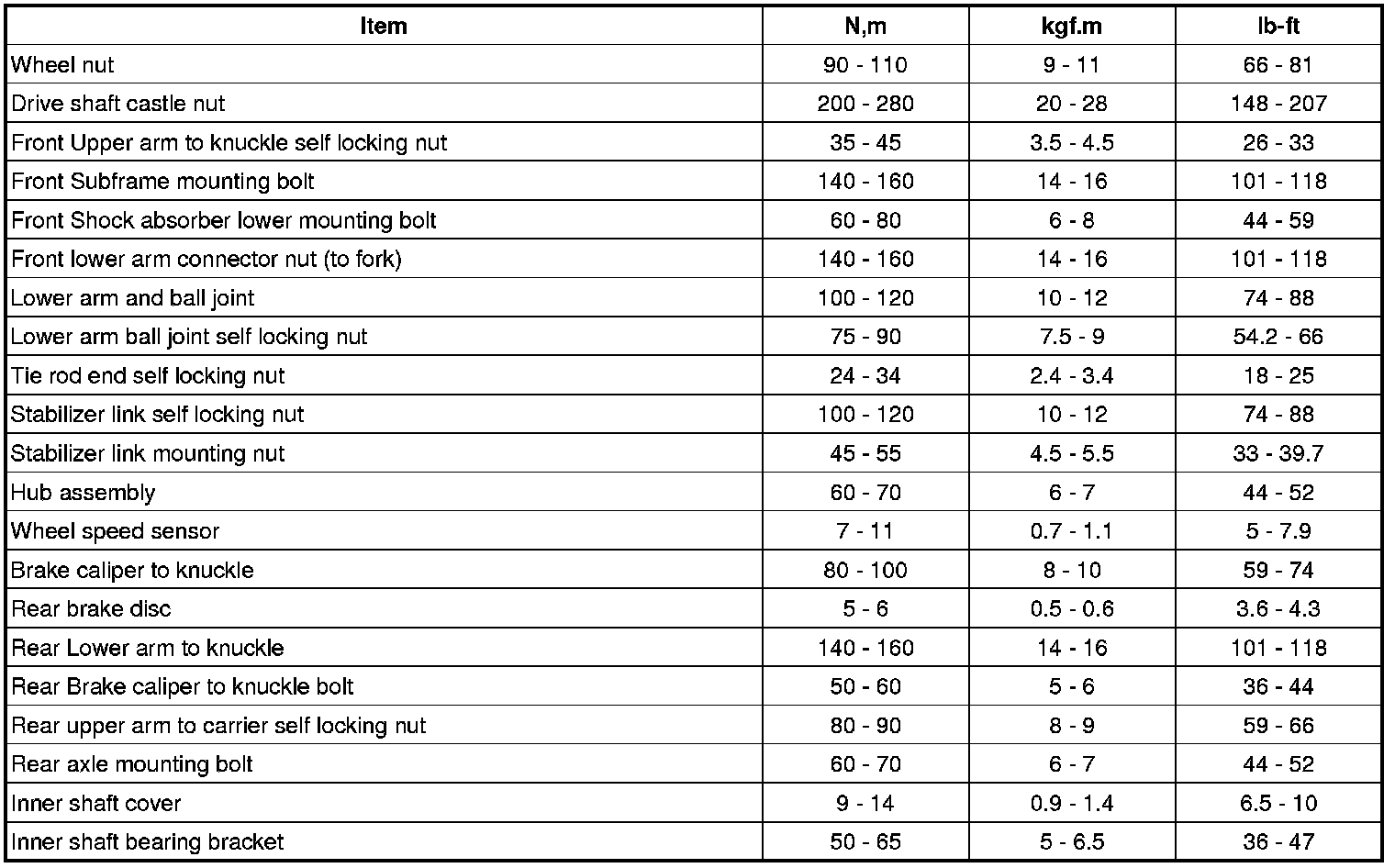

Tightening Torques





CAUTION:
Replace self-locking nuts with new ones after removal.
