Manual Controller

Replacement

1. Disconnect the negative (-) battery terminal.

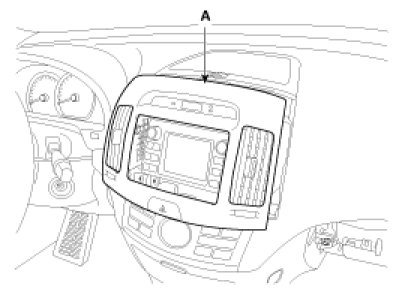

2. After disconnect the mounting clip, remove the center facia panel(A).

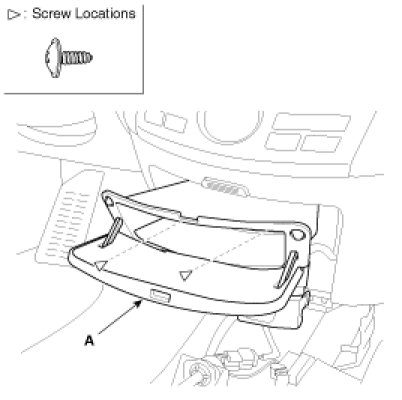

3. After loosening the mounting screw, remove the center facia lower panel(A).

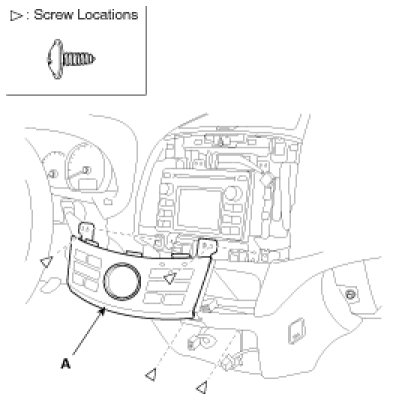

4. Remove the heater & A/C controller (A) after loosening 4 screws.

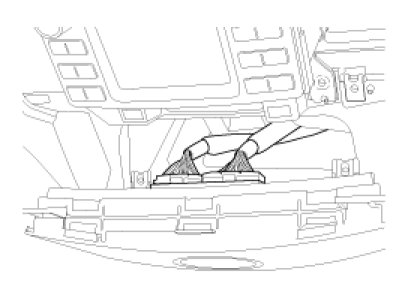

5. Disconnect the connectors (A) from the center facia.

6. Installation is the reverse order of removal.
