Fuel System - Specifications





Specifications

Sensors
FUEL TANK PRESSURE SENSOR (FTPS)
- Type: Piezo-Resistive Pressure Sensor

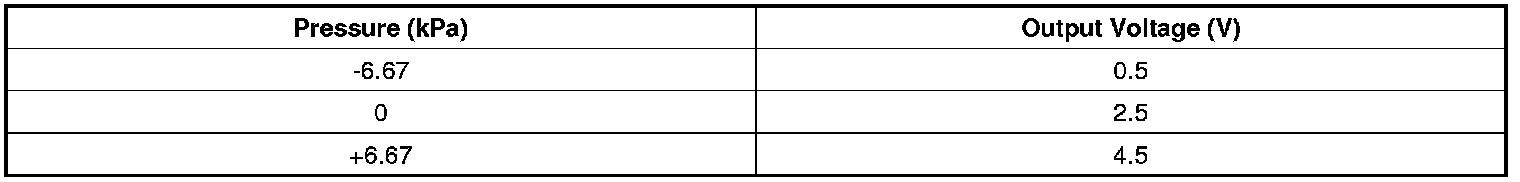

- Specification
