Fuel System - Specifications





Specifications

Sensors
HEATED OXYGEN SENSOR (HO2S) [BANK 1 / SENSOR 1]
- Type: Zirconia (ZrO2) Type

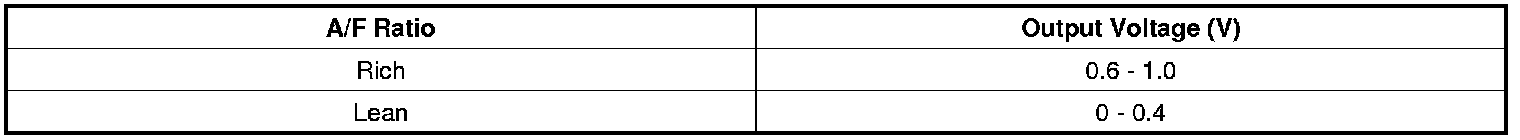

- Specification





HEATED OXYGEN SENSOR (HO2S) [BANK 1 / SENSOR 2]
- Type: Zirconia (ZrO2) Type
- Specification
