Connecting Rod Bearing

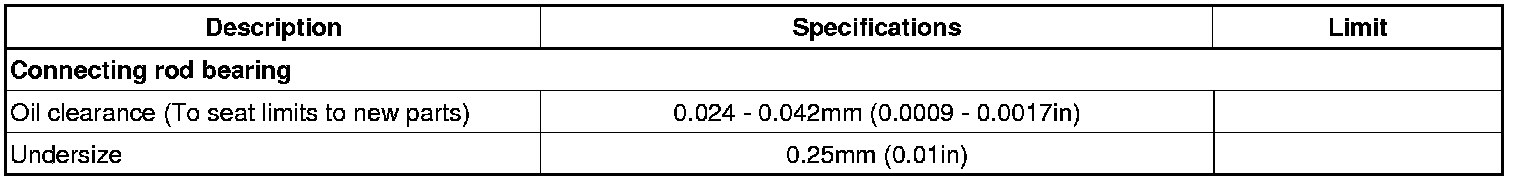

Connecting Rod Bearing Clearance

Connecting Rod Bearing Cap

Reinstall the bearing half and cap, and torque the nuts.

Tightening torque 49.0 - 52.0 Nm (5.0 - 5.3 kgf.m, 36.2 - 38.3 lb-ft)

Reinstall the bearings and caps, then torque the bolts.

Tightening torque 27.5 - 31.4 Nm (2.8 - 3.2 kgf.m, 20.3 - 23.11 lb-ft) + 60° ~ 64°
