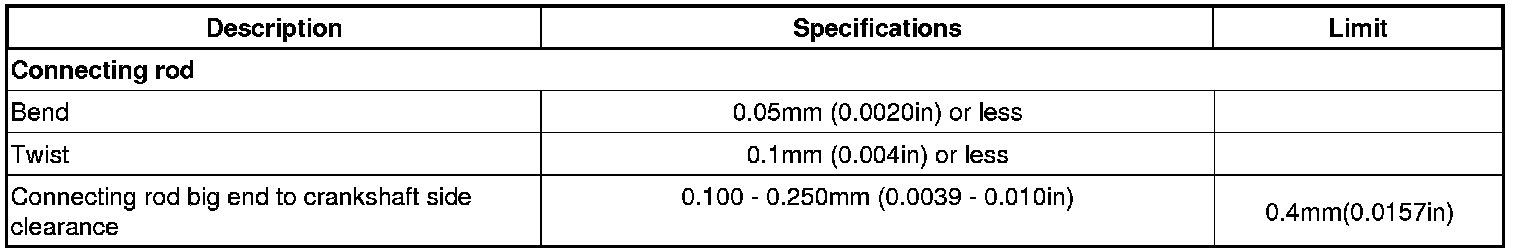

Connecting Rod





Connecting Rod






Standard end play 0.1 - 0.25 mm (0.004 - 0.010 in)
Maximum end play 0.4 mm (0.016 in)
