Intake Manifold





Intake Manifold

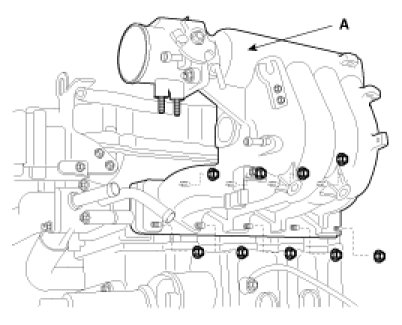

Intake manifold assembly(A).
Tightening torque 15.7 - 22.6 Nm (1.6 - 2.3 kgf.m, 11.6 - 16.6 lb-ft)
