Body Control Module: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

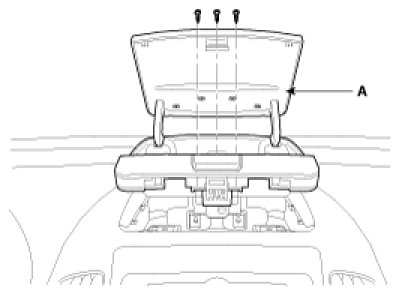

2. Remove the upper tray (A).

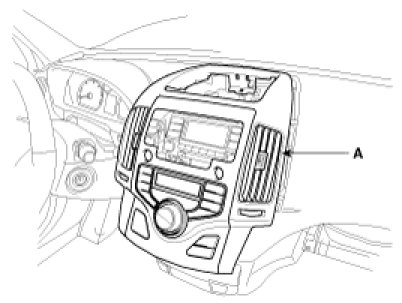

3. Remove the crash pad center facia panel (A).

NOTE:
Take care not to scratch the crash pad and related parts.

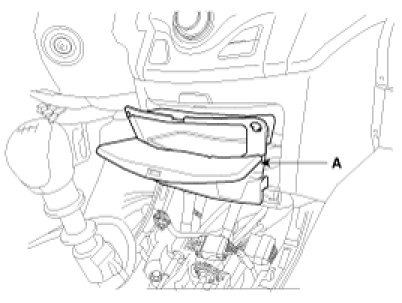

4. After loosening the mounting clips, then remove the center fascia lower tray (A).

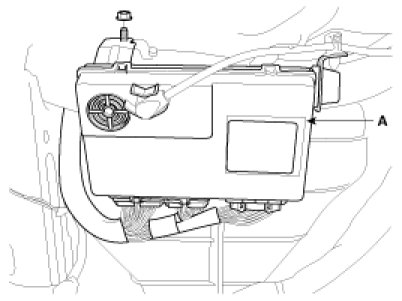

5. Remove the body control module (A) after loosening 1 bolts and disconnecting connector.






Installation

1. Install the body control module.
2. Install the center facia lower try.
3. Install the center fascia panel.
4. Install the upper tray.
