Power Window Switch: Components

Power Window Main Switch

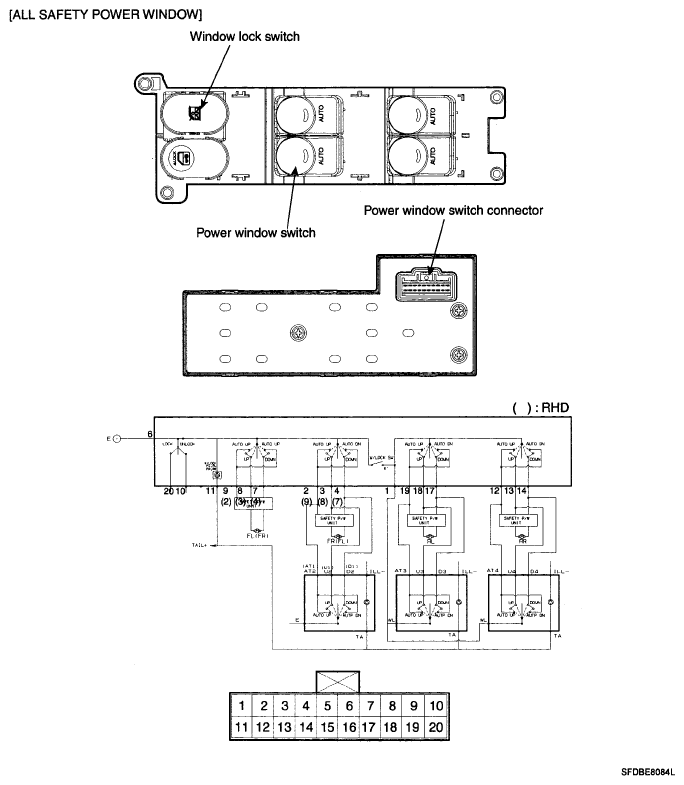

Fig 1: Identifying Power Window Main Switch Components (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

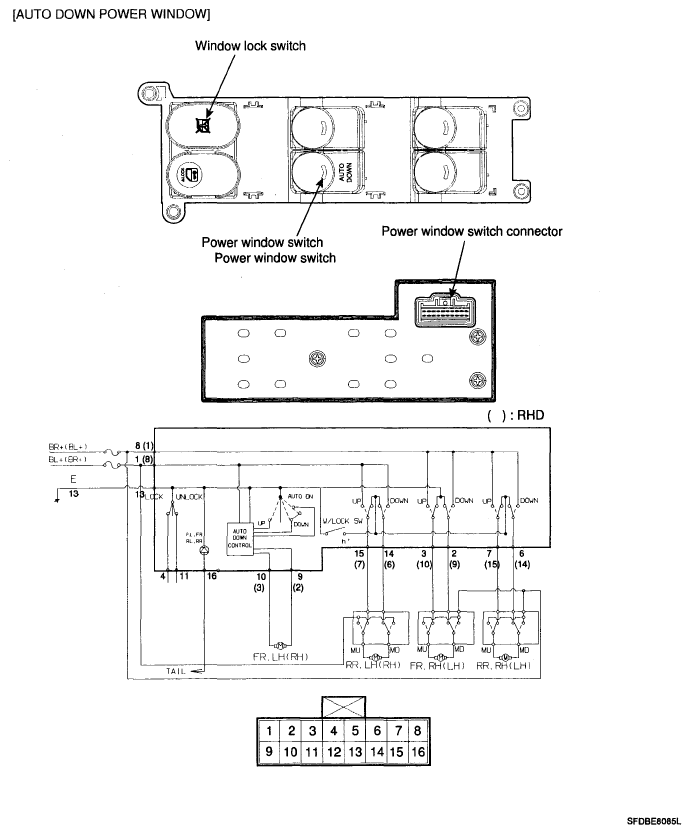

Fig 2: Identifying Power Window Main Switch Components (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

Passenger/Rear Power Window Switch

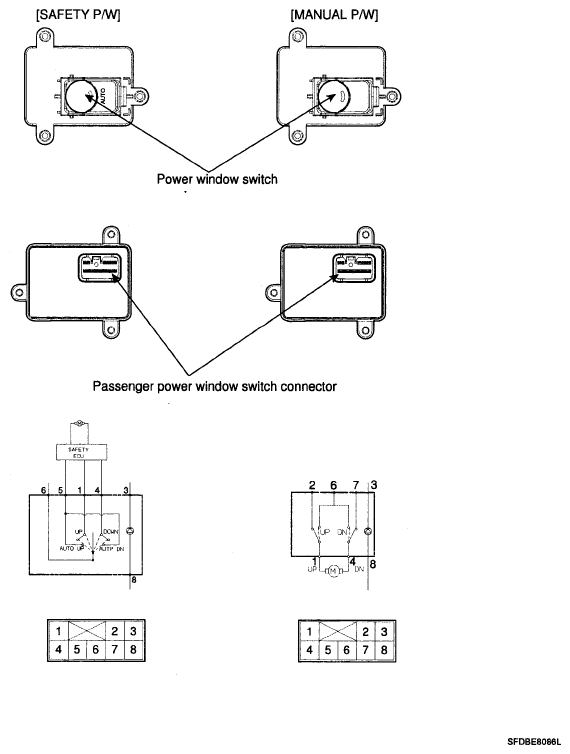

Fig 3: Identifying Passenger/Rear Power Window Switch Components

Courtesy of HYUNDAI MOTOR CO.
