Intake Manifold: Components

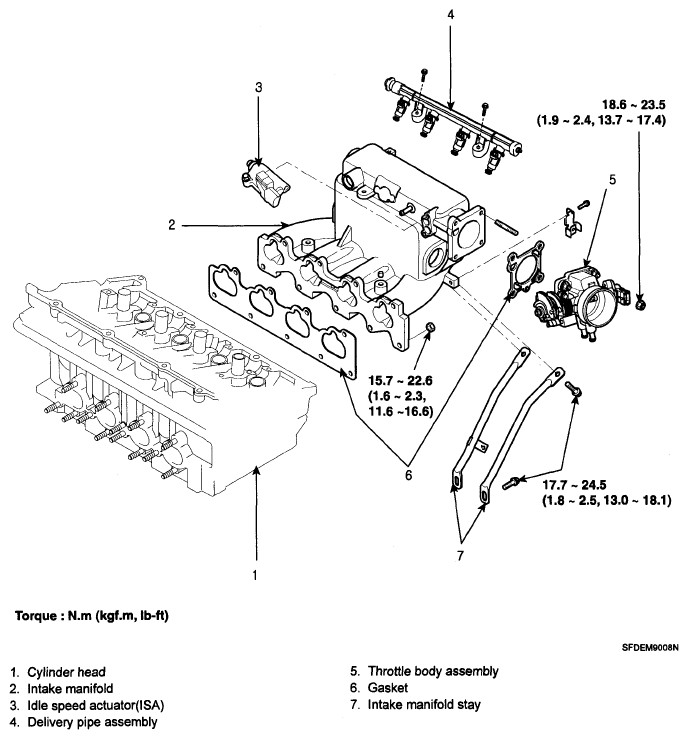

Fig 1: Intake Manifold Components With Torque Specifications

G06135910

Courtesy of HYUNDAI MOTOR CO.
