Power Supply Circuit Inspection

Check open in power circuit
1. Ignition "ON" & engine "OFF".
2. Measure the resistance between fog lamp power circuit of FAM (BCM-FE-3)and fog lamp (E19-2).
  Specification : 0 Ω

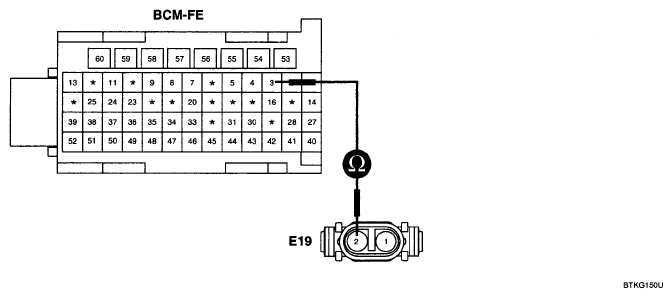

  Fig 1: Measuring Resistance Between Fog Lamp Power Circuit Of FAM (BCM-FE-3)And Fog Lamp (E19-2)
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within the specification?
  YES

  Go to "GROUND CIRCUIT INSPECTION ".

  NO

  Repair open in power circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
